| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Height | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

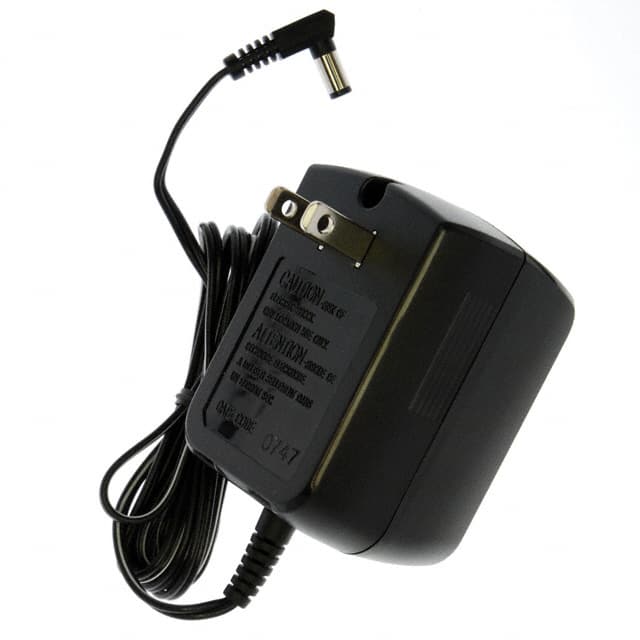

The Tamura 420AS16056 is an AC/AC wall mount adapter designed for reliable power conversion. It operates with a 16VAC output voltage and can deliver up to 9W of power, with a current rating of 560mA.
This adapter features a fixed blade input type and is intended for use in North America. Its applications include ITE (Commercial) equipment, making it suitable for various business and office environments.
Mechanically, the unit has dimensions of 46.5mm in length, 52.0mm in width, and 72.0mm in height. It is equipped with a right-angle barrel plug connector, measuring 2.1mm ID x 5.5mm OD, with a length of 12.5mm. The operating temperature range for this adapter is from -10°C to 40°C.
Packaged as a wall mount unit, the Tamura 420AS16056 is designed for convenient installation and use.
The output voltage is 16VAC.
The power rating is 9W.
The current output is 560mA.
It uses a fixed blade input type.
It is designed for North America.
Applications include ITE (Commercial).
The operating temperature range is -10°C to 40°C.
