| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

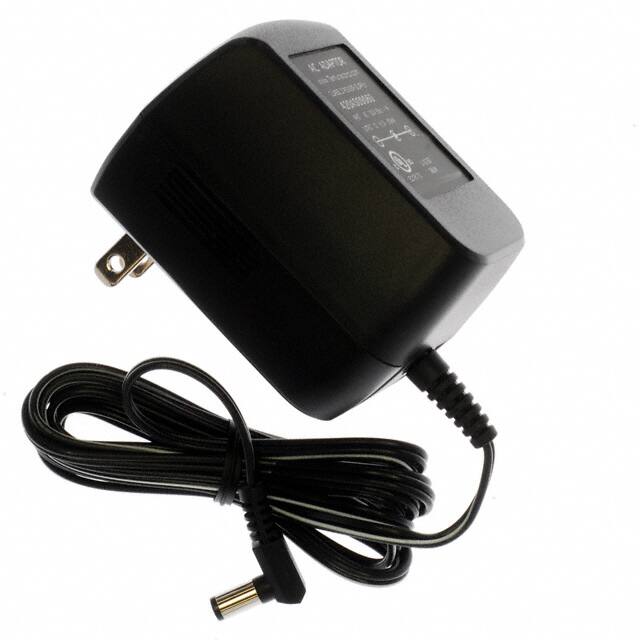

This Tamura 420AS09060 is an AC/DC wall mount adapter designed for ITE commercial applications. It provides a stable 9V output voltage with a maximum current of 600mA, delivering a total power of 5.4W.
The adapter features a NEMA 1-15P input connector and a right-angle barrel plug output with standard dimensions (2.1mm I.D. x 5.5mm O.D. x 12.5mm) and positive center polarization. Its compact dimensions measure 72.0mm in length, 52.0mm in width, and 46.5mm in height, with a cord length of 72 inches (1.83m).
Designed for reliable operation, it functions within an operating temperature range of -10°C to 40°C. The unit is approved by cULus, ensuring compliance with safety standards for North American usage. Its wall mount form factor (Class II) makes it convenient for various installations.
9V
600mA
5.4W
-10°C to 40°C
Barrel plug, 2.1mm ID x 5.5mm OD, right angle
NEMA 1-15P fixed blade
Yes, it is cULus certified.
