| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264 pcs
|
264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Capacitance | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Tape & Reel | |
| Technology | |
| Type | |
| Values | |
| Voltage |

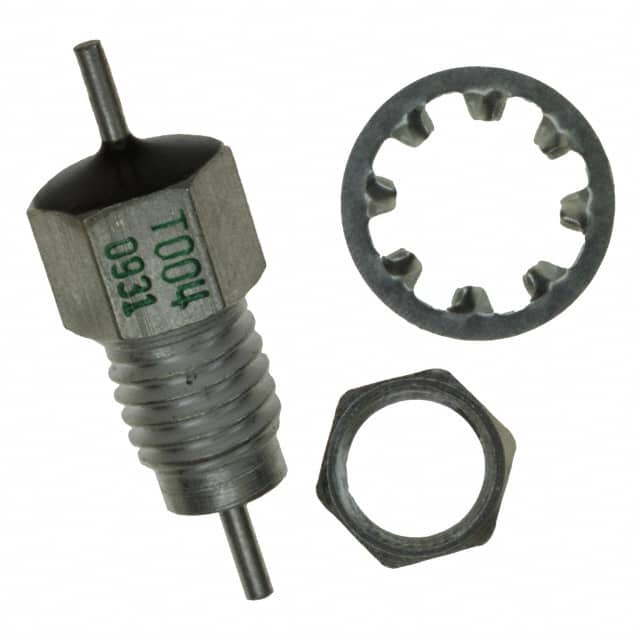

The 4202-004LF is a low pass EMI/RFI filter from CTS-Frequency Controls, utilizing an LC (Pi) topology with a 3rd order filter response. It features a capacitance of 2500 pF and is rated for a continuous current of 15 A with a voltage rating of 350 V (note: some sources indicate 500 V at 85°C). The filter provides 50 dB attenuation at 100 MHz, making it suitable for suppressing high-frequency noise on data lines in mobile devices and other applications.
The filter is designed for chassis mounting with an axial bushing package, measuring 0.250 inches in diameter by 0.468 inches in length (6.35 mm x 11.89 mm). It operates over a temperature range of -55°C to 125°C. The component is RoHS3 compliant and has an MSL of 1 (unlimited), though these compliance statuses are unverified.
This filter is intended for use in data lines for mobile devices, providing effective EMI suppression. The single-channel design simplifies integration into power or signal lines requiring low-pass filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.56 | $12.56 |
| 10+ | $11.90 | $11.90 |
| 20+ | $10.80 | $10.80 |
| 50+ | $10.24 | $10.24 |
| 100+ | $9.58 | $9.58 |
| 200+ | $9.36 | $9.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 350 V, though some sources indicate 500 V at 85°C.
The filter comes in an axial bushing package for chassis mounting.
-55°C to 125°C.
It is listed as RoHS3 compliant, but this status is unverified.
50 dB at 100 MHz.
15 A.
2500 pF.
