Mfr Part #:

41969-2

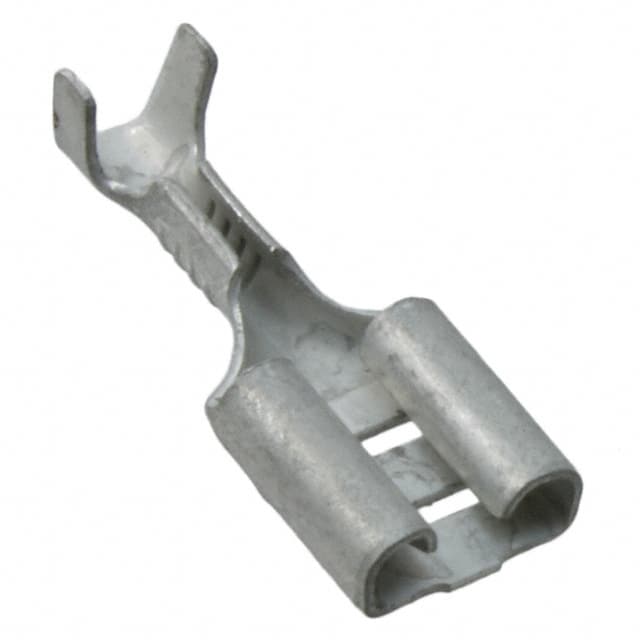

TE Connectivity 41969-2 is a non-insulated female quick disconnect terminal for 18-22 AWG wire, with a 0.250" tab width, crimp termination, and tin-plated brass contact.

✓ Total Stock: 2,137 pcs

$ Price Range: $0.34 - $0.59

41969-2 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	137 pcs On Request	137 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

41969-2 Description

Short technical summary and product information.

The TE Connectivity 41969-2 is a standard female quick disconnect terminal designed for 18-22 AWG wire. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it suitable for common quick-connect applications. The terminal uses a crimp termination method and is intended for free hanging (in-line) mounting.

The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The terminal is non-insulated, so it is typically used in applications where insulation is not required or where additional insulation is added during assembly. The overall length of the terminal is 20.45mm (0.805").

This component is widely used in automotive, appliance, and industrial wiring for secure wire-to-tab connections that require frequent disconnection and reconnection. The crimp termination ensures a reliable mechanical and electrical bond when used with the appropriate crimping tool.

41969-2 Quick Information

Product Type: Quick Disconnect Terminal

Canonical Name: TE Connectivity 41969-2 Quick Disconnect Terminal, Female, 0.250" Tab Width, Crimp, Non-Insulated

Subcategory: Female Quick Disconnect

41969-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

41969-2 Estimated Pricing

Qty	Low	High
1+	$0.59	$0.59
10+	$0.51	$0.51
25+	$0.47	$0.47
50+	$0.45	$0.45
100+	$0.43	$0.43
250+	$0.40	$0.40
500+	$0.38	$0.38
1,000+	$0.37	$0.37
2,500+	$0.34	$0.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

41969-2 Features

Female quick disconnect for 0.250" tab width.
Accepts 18-22 AWG wire gauge.
Crimp termination for secure connection.
Non-insulated brass contact with tin finish.
Free hanging (in-line) mounting style.

41969-2 Applications

Ideal for wire-to-tab connections in automotive.
Used in appliance and industrial wiring.
Suitable for power distribution applications.
Common in quick connect/disconnect harnesses.

41969-2 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the mounting type for the 41969-2 terminal?

The mounting type is Free Hanging (In-Line).

What wire gauge does the 41969-2 terminal accept?

It accepts 18-22 AWG wire.

What is the tab width of the 41969-2?

The tab width is 0.250" (6.35mm).

What is the termination method for this terminal?

The termination method is Crimp.

Is the 41969-2 terminal insulated?

No, it is non-insulated.

What is the contact material and finish?

The contact is made of brass with a tin finish.

What is the overall length of the 41969-2 terminal?

The overall length is 20.45mm (0.805").

Category	Quick Connects, Quick Disconnect Connectors
Manufacturer Name	TE Connectivity
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Lead Style	Standard
Length	20.45mm (0.805")
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032" (0.81mm)
Tab Width	0.250" (6.35mm)
Terminal Type	Standard
Termination	Crimp
Termination Style	Crimp
Wire Gauge	18-22 AWG
