| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,085 pcs
|
1085 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

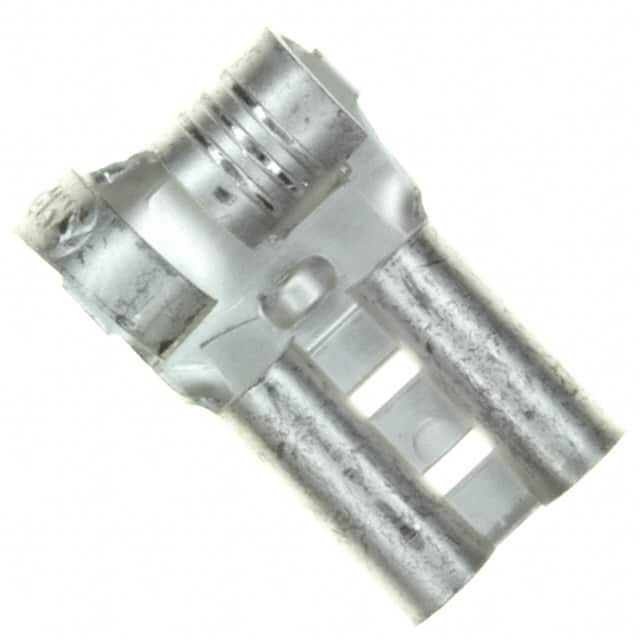

The 41898 from TE Connectivity is a non-insulated female quick connect receptacle designed for standard 0.250" (6.35mm) mating tabs. It accepts 12-18 AWG wire and is terminated via crimp, ensuring a secure mechanical and electrical connection. The contact is made of brass with a tin plating, providing good conductivity and corrosion resistance.
The terminal features an angled 90° flag design, allowing for compact, right-angle installations in free-hanging, in-line configurations. The tab dimensions are 0.250" width, 0.032" thickness, and 0.305" length. This component is suitable for applications where quick connect/disconnect functionality is required, such as wiring harnesses, appliances, and control panels.
No insulation is provided, so proper clearance and isolation must be maintained in the assembly. The crimp termination requires appropriate tooling for the specified wire gauge range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.36 | $0.36 |
| 50+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 3,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Angled - 90°, Flag.
12-18 AWG.
0.250" (6.35mm).
No, it is non-insulated.
Brass with tin plating.
Free hanging (in-line), right angle.
Crimp.
