| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Termination | |
| Termination Style | |
| Voltage | |
| Width |

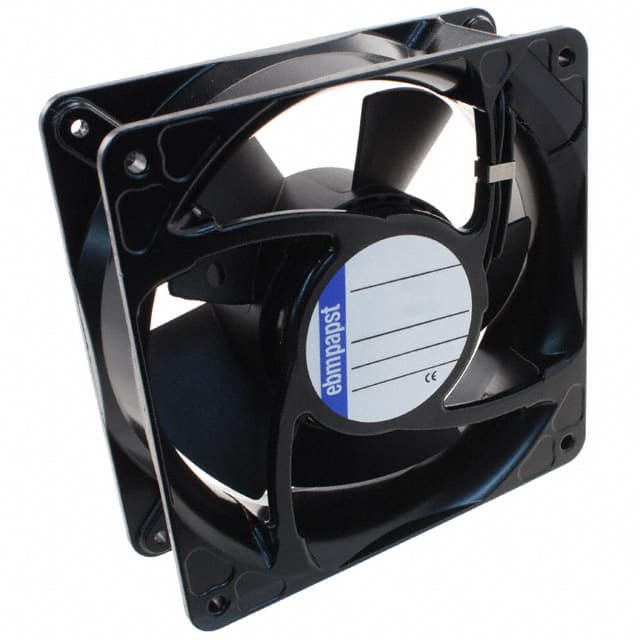

The 4184N/17X is a 24VDC tubeaxial fan manufactured by Ebm-Papst. It features a square 119x38mm frame and delivers an airflow of 106 CFM (2.97 m³/min) at a speed of 3200 RPM. The fan operates at 24VDC with a power consumption of 4.9 W. It utilizes a ball bearing system. The noise level is rated at 49.0 dB(A). The fan is terminated with 3 wire leads.
The operating temperature range is -30 to 70°C (-22 to 158°F). The fan holds approvals from CE, CSA, EAC, UL, and VDE. It is compliant with RoHS3, REACH, and has an MSL of 1 (unlimited).
As a tubeaxial fan, it moves air along the axis of the fan blades, making it suitable for cooling applications in electronic equipment, industrial systems, and telecommunications.
| Qty | Low | High |
|---|---|---|
| 1+ | $79.75 | $79.75 |
| 10+ | $77.90 | $77.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates at 24VDC.
The operating temperature range is -30 to 70°C (-22 to 158°F).
Yes, it is RoHS3 compliant.
The airflow is 106 CFM (2.97 m³/min).
The noise level is 49.0 dB(A).
It uses a ball bearing.
It is approved by CE, CSA, EAC, UL, and VDE.
