| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Level | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Contact Finish | |
| Contact Rating Non-Switching | |
| Contact Rating Switching | |
| Contact Resistance (Initial) | |
| Contact Resistance After Life Test | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Electrical Life | |
| Features | |
| Height Above Board | |
| Ic Type | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material (Actuator) | |
| Material (Tape) | |
| Material - Base | |
| Material - Terminal | |
| Material Contact | |
| Material Cover | |
| Mechanical Life | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operation Condition | |
| Operation Force | |
| Pitch | |
| Soldering Temperature (Hand) | |
| Soldering Temperature (Wave) | |
| Storage Condition | |
| Termination Style | |
| Voltage Rating | |
| Washable |

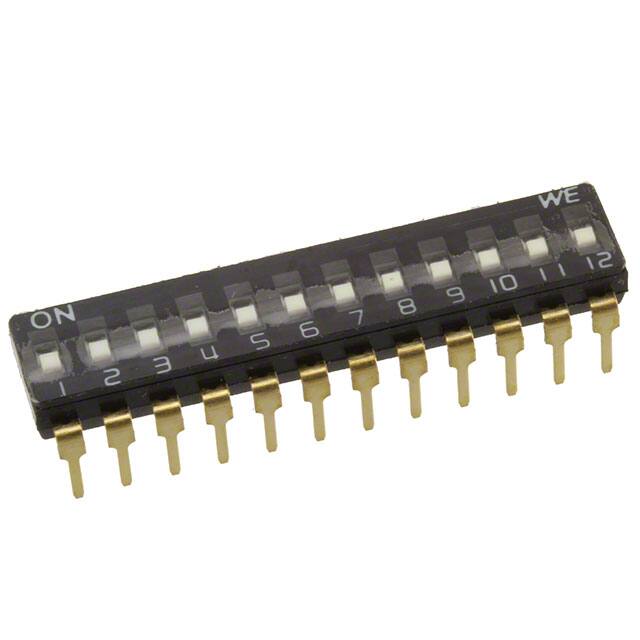

This Würth Elektronik 418127160912 is a slide-actuated DIP switch designed for general electronic equipment. It features a single-pole, single-throw (SPST) circuit configuration and is rated for a switching current of 25mA at 24VDC, with non-switching capabilities up to 100mA at 50VDC. The switch has gold-plated contacts and terminals for reliable performance.
The operating temperature range for this component is -40°C to 85°C, with both storage and operation conditions falling within this range. It is designed for Through Hole mounting with a PC Pin termination style. The actuator is a slide type, recessed, and the unit is washable and features tape sealing for protection.
Materials include PA9T for the cover and base, PA66 for the actuator, and gold plating on contacts and terminals. The switch is suitable for wave soldering up to 260°C for 10 seconds or hand soldering up to 350°C for 3 seconds. It is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 24VDC.
The contact rating for switching is 25mA at 24VDC.
The operating temperature range is -40°C to 85°C.
Yes, the switch is RoHS3 compliant.
