| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Washable |

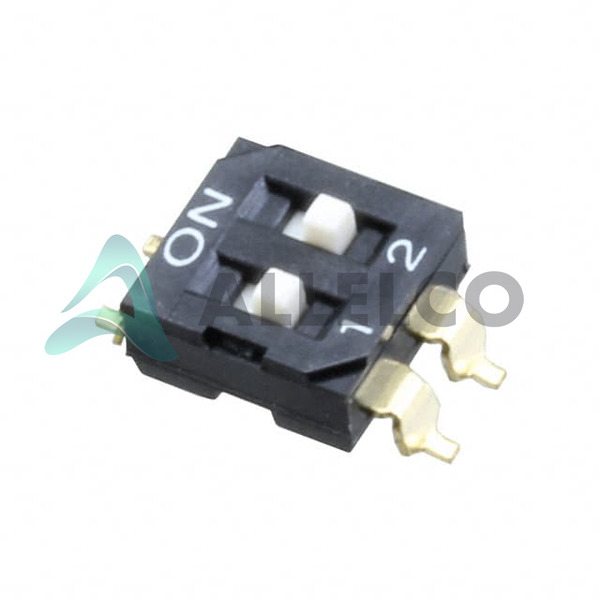

The Würth Elektronik 418121270802 is a Single Pole Single Throw (SPST) DIP switch designed for surface mounting. It features a raised slide actuator and Gull Wing termination style with Gold plated contacts and terminals.
This switch is rated for a maximum switching current of 25mA at 24VDC and a non-switching current of 100mA at 50VDC. The initial contact resistance is a maximum of 50mΩ, increasing to 100mΩ after life testing. Insulation resistance is a minimum of 100MΩ at 500VDC, with a dielectric strength of 500VAC for one minute.
Operating within a temperature range of -40°C to 85°C, the switch has a mechanical and electrical life of 2000 cycles. The pitch is 2.54mm (0.100"). The height above the board is 4.40mm (0.173"). This component is designed for general electronic equipment and is RoHS3 compliant.
It is supplied in the "off" position and is tape and reel packaged. The base and cover are made of PA9T UL 94 V-0, and the actuator is PA46 UL 94 V-0, both in black and white respectively. The terminals are Gold plated.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 25mA at 24VDC for switching and 100mA at 50VDC for non-switching.
The operating temperature range is -40°C to 85°C.
This switch requires Surface Mount type mounting.
Yes, this switch is RoHS3 Compliant.
