| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

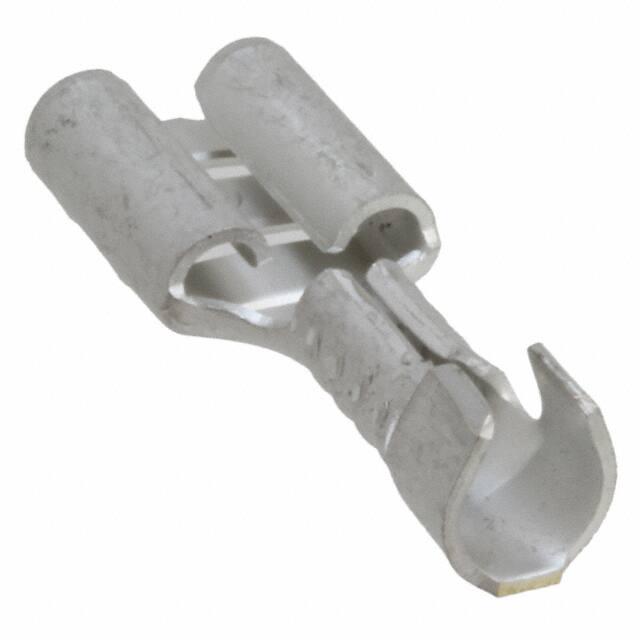

The TE Connectivity 41729-2 is a standard female quick connect receptacle designed for 16-18 AWG wire. It features a 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, and 0.305" (7.75mm) tab length. The contact is made of brass with a tin finish, providing reliable conductivity and corrosion resistance. This non-insulated terminal uses a crimp termination method and is designed for free hanging (in-line) mounting. The overall length is 20.45mm (0.805"). It is commonly used in power and signal applications requiring a quick and secure disconnect connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.32 | $0.32 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.29 | $0.29 |
| 2,500+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 41729-2 accepts 16-18 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is a non-insulated terminal.
It uses crimp termination.
The contact is brass with a tin finish.
