| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Height - Seated (Max) | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Size / Dimension | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

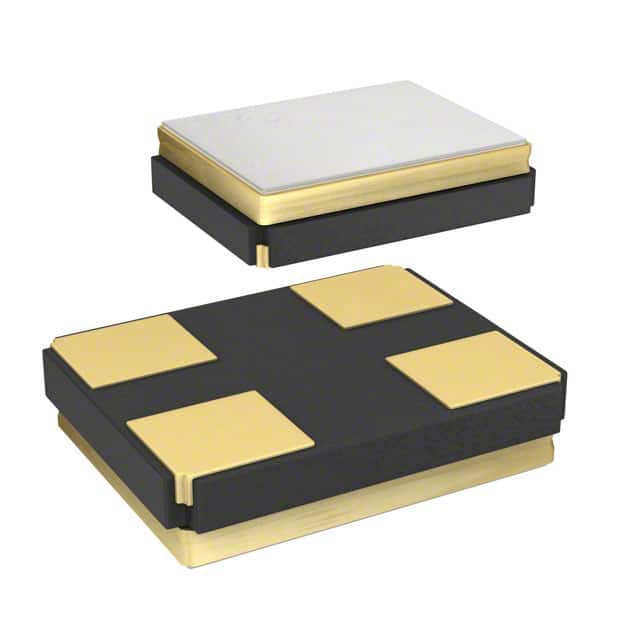

The 416F32022CKR is a 32 MHz fundamental mode quartz crystal from CTS-Frequency Controls, part of the 416 series. It is designed for surface-mount assembly in a compact 4-SMD, no lead ceramic package measuring 1.60mm x 1.20mm with a maximum seated height of 0.45mm. Key electrical specifications include a nominal frequency of 32 MHz, load capacitance of 8pF, maximum equivalent series resistance of 80Ω, frequency tolerance of ±20ppm, and frequency stability of ±20ppm. The operating temperature range is -20°C to 70°C.
This crystal is suitable for a wide range of applications including IoT and IIoT devices, wireless communications, FPGA and microcontroller circuits, USB interfaces, computer peripherals, portable equipment, test and measurement, M2M communications, and wearables. The hermetic ceramic package ensures reliable performance in commercial and industrial environments. The product is specified for use with tape and reel packaging per EIA-481.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.37 | $0.37 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.32 | $0.32 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.28 | $0.28 |
| 6,000+ | $0.27 | $0.27 |
| 9,000+ | $0.26 | $0.26 |
| 15,000+ | $0.25 | $0.25 |
| 21,000+ | $0.25 | $0.25 |
| 30,000+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 MHz.
8 pF.
-20°C to 70°C.
4-SMD, No Lead.
RoHS3 Compliant (unverified).
±20ppm.
80 Ω maximum.
