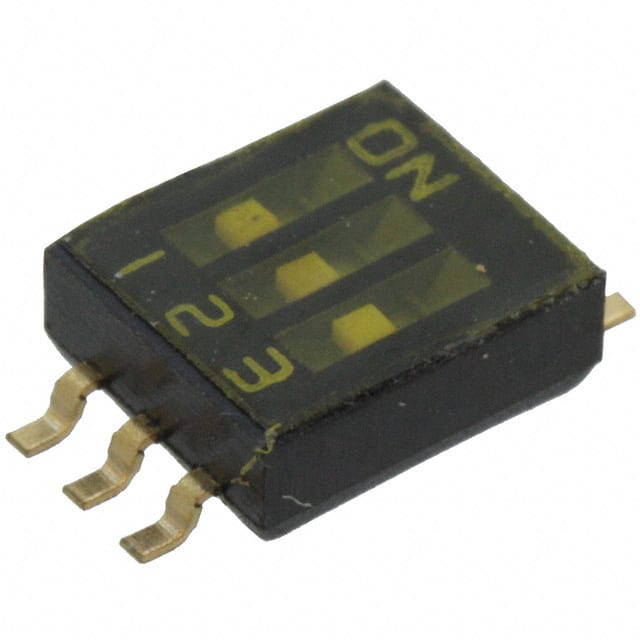

416131160803 The Würth Elektronik 416131160803 is a 3-position SPST DIP switch with a 1.27mm pitch. It features a flat, slide actuator with tape seal and is designed for surface mounting.
Mfr Part #:

416131160803

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 416131160803 is a 3-position SPST DIP switch with a 1.27mm pitch. It features a flat, slide actuator with tape seal and is designed for surface mounting.
✓ Total Stock: 1,109 pcs
$ Price Range: $0.75

416131160803 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,109 pcs
On Request
1109 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

416131160803 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Plating
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Length
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

416131160803 Description

Short technical summary and product information.

This Würth Elektronik 416131160803 is a compact SMT DIP switch from the WS-DISV series, designed for general electronic equipment. It offers a 1.27mm pitch and a 3-position SPST circuit configuration.



The switch has a flat, slide actuator with a tape seal, making it washable and suitable for various environmental conditions. The contact rating is 25mA at 24VDC, with an initial contact resistance of 100mΩ maximum. The insulation resistance is a minimum of 100MΩ at 500VDC, and it has a dielectric strength of 300VAC.



Constructed with PPA for the cover and base, and PA46 for the actuator, all rated UL94 V-0, this DIP switch ensures material integrity. The contacts and terminals are gold-plated for reliable conductivity. The operating temperature range is -40°C to 85°C, and it has a mechanical life of at least 2000 cycles and an electrical life of 1000 cycles.



Designed for surface mounting with a gull wing termination style, this component is ideal for automated assembly processes. Its height above the board is 2.50mm. The switch is RoHS3 compliant and has an MSL rating of 1.

416131160803 Quick Information

Product Type: DIP Switch
Series: Small Compact SMT Flat Actuator with Top Tape
Canonical Name: Würth Elektronik WS-DISV Small Compact SMT Flat Actuator with Top Tape 1.27 mm
Subcategory: SMT DIP Switch

416131160803 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

416131160803 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

416131160803 Features

  • 3-position SPST DIP switch.
  • 1.27mm pitch for compact designs.
  • Surface mount with gull wing termination.
  • Washable design with tape seal.
  • Gold-plated contacts and terminals.

416131160803 Applications

  • Ideal for automated PCB assembly.
  • Suitable for general electronic equipment.
  • Used in applications requiring washable switches.
  • Compact design for space-constrained boards.

416131160803 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the switch?

The switch has a voltage rating of 24VDC.

What is the contact rating for switching?

The contact rating switching is 25mA at 24VDC.

What is the operating temperature range?

-40°C to 85°C.

What material is used for the contact plating?

Gold plating is used for contacts and terminals.

What is the mechanical life of the switch?

The mechanical life is rated at a minimum of 2000 cycles.
