| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

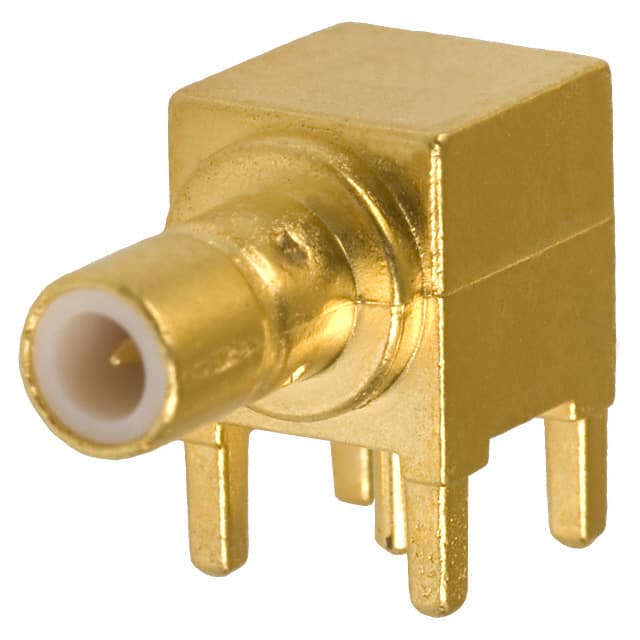

The TE Connectivity 415340-1 is an SMB (SubMiniature B) coaxial connector designed for RF applications. It features a jack interface with a male pin center contact, right angle orientation, and snap-on coupling for quick and secure mating. The connector is rated for 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for various telecommunications, networking, and test equipment.
This connector uses through hole mounting with solder termination for both the center contact and shield. The housing is gold-plated, and the center contact is made of brass. The single-port design is typical for cable or PCB edge connections. The right angle profile saves space on the board.
Compliance data from the database indicates RoHS3 compliance, REACH unaffected status, and an MSL rating of 1 (unlimited). These values are unverified and should be confirmed with the manufacturer. No datasheet is currently available for this part.
Typical applications include RF signal transmission, antenna connections, and instrumentation interfaces where a compact, reliable coaxial connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.39 | $12.39 |
| 10+ | $10.53 | $10.53 |
| 25+ | $9.87 | $9.87 |
| 50+ | $9.40 | $9.40 |
| 100+ | $8.95 | $8.95 |
| 250+ | $8.39 | $8.39 |
| 500+ | $7.99 | $7.99 |
| 1,000+ | $7.61 | $7.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
4 GHz.
Through Hole, Right Angle.
Snap-On.
SMB.
Solder.
Gold.
