| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

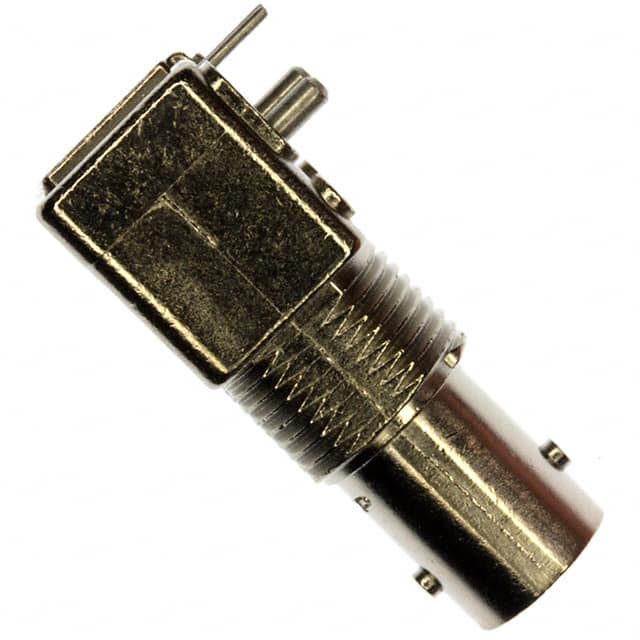

The TE Connectivity 414907-1 is a BNC jack coaxial connector with a female socket design. This connector features a 75 ohm impedance and is rated for operation up to 2 GHz, making it suitable for RF signal transmission applications in broadcast, telecommunications, and test equipment.
The connector offers a right angle PCB mount configuration with through hole solder terminations for both center contact and shield. The mounting type supports panel mount with a bulkhead front side nut, providing secure installation. Fastening is accomplished via bayonet lock mechanism for quick and reliable coupling.
Key construction details include a beryllium copper center contact material and a silver housing color. The connector has a single port design.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.68 | $12.68 |
| 10+ | $10.76 | $10.76 |
| 25+ | $10.36 | $10.36 |
| 35+ | $9.36 | $9.36 |
| 105+ | $9.10 | $9.10 |
| 280+ | $7.71 | $7.71 |
| 525+ | $7.55 | $7.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel Mount, Through Hole, Right Angle.
75 Ohm.
2 GHz.
BNC.
Jack, Female Socket.
Solder termination for both center contact and shield.
Silver.
