| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

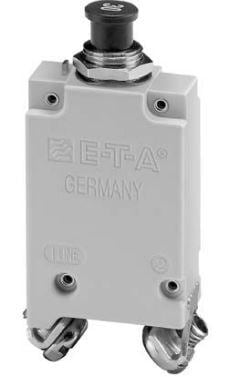

This E-T-A 413-K34-LN2-30A is a high-performance thermal circuit breaker with a single-pole configuration. It utilizes a tease-free, trip-free, snap-action mechanism and a manual push/pull on/off actuation, compliant with M-type TO CBE to EN 60934.
The circuit breaker is rated for 115 V AC (400 Hz) and 28 V DC, with a current rating range of 30 to 90 A depending on the version. Specifically, the -FN2 version supports 30-55 A, while -LN2 and -N2 versions support 30-90 A. It offers an interrupting capacity of 1,000 A at 115 V AC and 6,000 A at 28 V DC.
Designed for panel mounting, the 413-K34-LN2-30A operates within an ambient temperature range of -55 to +75 °C. It meets various environmental and mechanical test standards, including vibration, shock, corrosion, and humidity resistance. The degree of protection for the operating area is IP40, and for the terminal area, it is IP00.
Typical applications include extra-low voltage wiring systems on vehicles (land, sea, air), defense equipment, and battery-powered machines. The threadneck panel mounting and specific terminal designs (K14, K34, K54) allow for versatile integration into different systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating range for the -LN2/-N2 versions is 30-90 A, and for the -FN2 version, it is 30-55 A. The specific part number 413-K34-LN2-30A is rated for 30A.
This circuit breaker is rated for 115 V AC (400 Hz) and 28 V DC.
The circuit breaker is designed for panel mounting.
The ambient temperature range is -55 to +75 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
