| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Housing Material | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Sound Pressure Level (SPL) | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

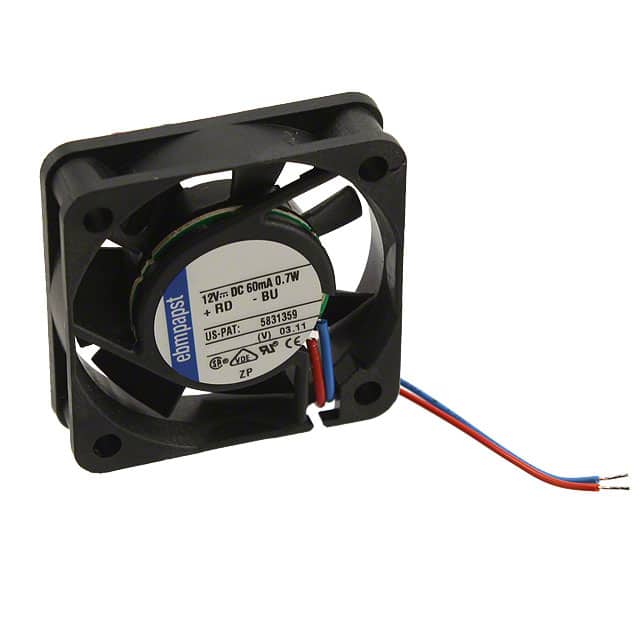

The Ebm-Papst 412F is a 12VDC tubeaxial fan in a compact 40x40x10mm package. It operates at 5400rpm, consuming 0.7W and delivering 8 m³/h (4.7 CFM) airflow. The fan uses a Sintec sleeve bearing system and has a rated service life of 45000 hours at 20°C and 17500 hours at 60°C.
Acoustic output is rated at 22.1 dB(A) sound pressure level and 4.4 B sound power level. The fan features a glass-fiber reinforced PA impeller and a PBT housing. Airflow exhausts over the struts, with counterclockwise rotation viewed toward the rotor.
The 412F is terminated with two AWG 28 wire leads (TR 64, stripped and tin-plated). Motor protection includes reverse polarity and blocked rotor safeguards. Operating temperature range is -20 to 70°C. This fan holds CSA, UL, and VDE approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.78 | $15.78 |
| 10+ | $14.52 | $14.52 |
| 300+ | $11.66 | $11.66 |
| 540+ | $10.76 | $10.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 to 14 VDC, with nominal voltage of 12VDC.
-20 to 70 °C.
RoHS3 compliant (unverified).
22.1 dB(A) sound pressure level.
Sintec sleeve bearing.
CSA, UL, and VDE.
