| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

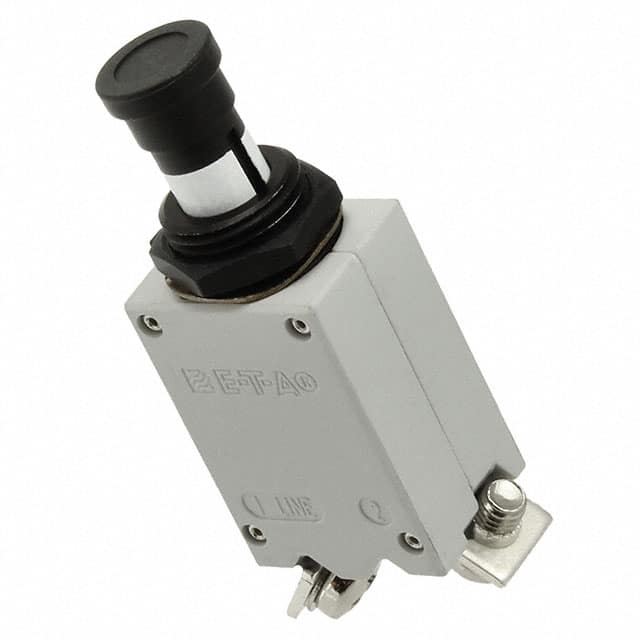

This E-T-A 4120-G111-K1M1-A1S0ZN-2A is a high-performance, miniaturized thermal circuit breaker with a trip-free mechanism and manual push/pull actuation. It is designed for panel mounting and offers temperature compensation.
The breaker has a single pole configuration and a current rating of 2A, with a voltage rating of 115V. It is approved by UL1077.
Key technical specifications include an interrupting capacity of 1000A at AC 115V (400 Hz) and 6000A at DC 28V. The operating temperature range is -55°C to +125°C. It also features a dielectric strength of 1500V and an insulation resistance greater than 100 MΩ (DC 500V).
Typical applications include extra-low voltage wiring systems on vehicles for land, sea, and air. The device has a degree of protection of IP40 in its operating area.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 115V.
The current rating is 2A.
It is a thermal breaker.
It is a panel mount device.
It is certified under UL1077.
The ambient temperature range is from -55°C to 125°C.
The dielectric strength is 1500V.
