| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

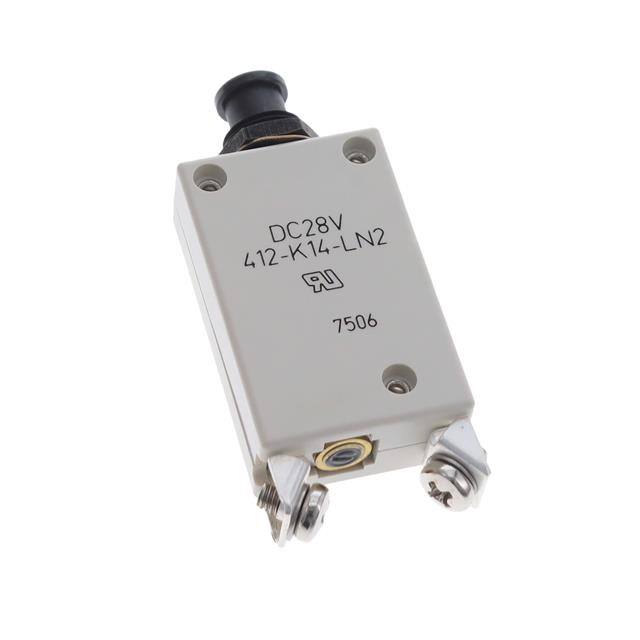

This E-T-A 412-K14-LN2-2A is a high-performance thermal circuit breaker with a single pole configuration. It is designed for panel mounting and features a push-pull plunger actuator. The breaker is rated for 2A current and can operate at 115VAC or 28VDC.
Key technical specifications include an interrupting capacity of 6,000A (UL 1077 and Icn). It operates within an ambient temperature range of -55°C to +75°C. The device offers an ingress protection rating of IP40 in the operating area and IP00 at the terminals.
Approvals include UL1077 and CSA C22.2 No 235, indicating its suitability for various applications. The breaker is built to withstand vibration, shock, corrosion, and humidity as per relevant industry standards.
Typical applications for this thermal circuit breaker include extra-low voltage wiring systems on vehicles for land, sea, and air, as well as defense equipment and battery-powered machines.
The current rating is 2A.
It is rated for 115V AC and 28V DC.
It is designed for panel mounting.
The operating temperature range is -55°C to +75°C.
It is approved by UL1077 and CSA C22.2 No 235.
