| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Adjustment Range | |
| For Use With | |
| Output Voltage | |
| SVHC Present |

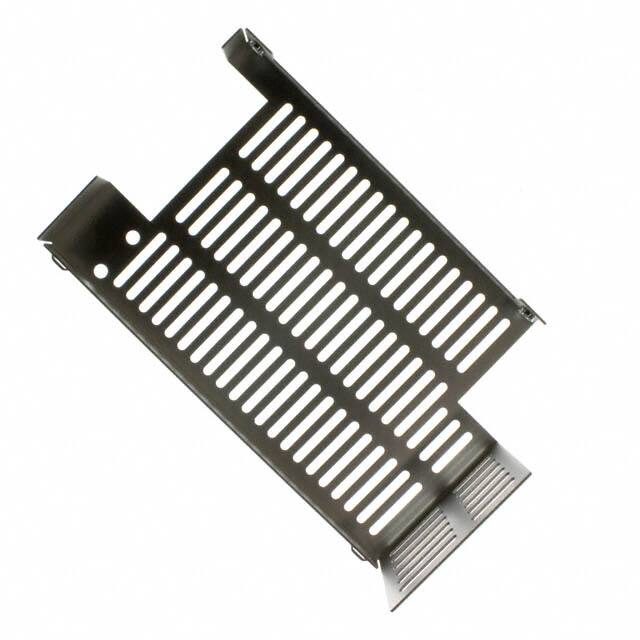

The Bel Power Solutions 412-59585-G is an accessory designed as a cover for the MAP80 Series of DC power supplies. This accessory is manufactured by Bel Power Solutions, a company known for its reliable power solutions.
The MAP80 Series power supplies are designed for industrial systems requiring high peak current capabilities and comply with EMC product standards such as EN 61204-3. They feature a variable frequency design with a thermally efficient U-channel chassis and offer integration flexibility with metric and SAE mounting inserts. Dual-mode connectors provide options for traditional terminal block connections or Molex connector mating.
This cover is specifically designed to be compatible with the Bel Power Solutions MAP80 Series. It contributes to the overall protection and integration of the power supply unit within an industrial system. The product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions.
Key features of the MAP80 Series power supplies, which this cover is designed for, include wide-range input for 110/230 VAC applications, CE marking to the Low Voltage Directive, TTL compatible power fail signal, and safety approvals to IEC/EN 62368-1. They also meet various EMC standards including EN 55032, EN 61000-3-2, and EN 61000-3-3.
The cover supports output voltages of 5V, 12V, 15V, 24V, 28V, ±5V, ±12V, ±15V, and ±24V.
The maximum output current is up to 14A for one rail, 7.5A at 12V operation, 6.0A at 15V, 4A, 3.5A, 3A, 2A, and 1A for other outputs.
The 12V rail can be adjusted from 11.5V to 15.5V.
The peak output current for the 12V rail is 9.2A, with a duty cycle limit of 10% and maximum 60 seconds.
It operates from a wide range input of 110/230 VAC.
The MTBF is greater than 175,000 hours.
Ripple and noise is 1% peak-to-peak of the output voltage, measured with 20 MHz bandwidth.
