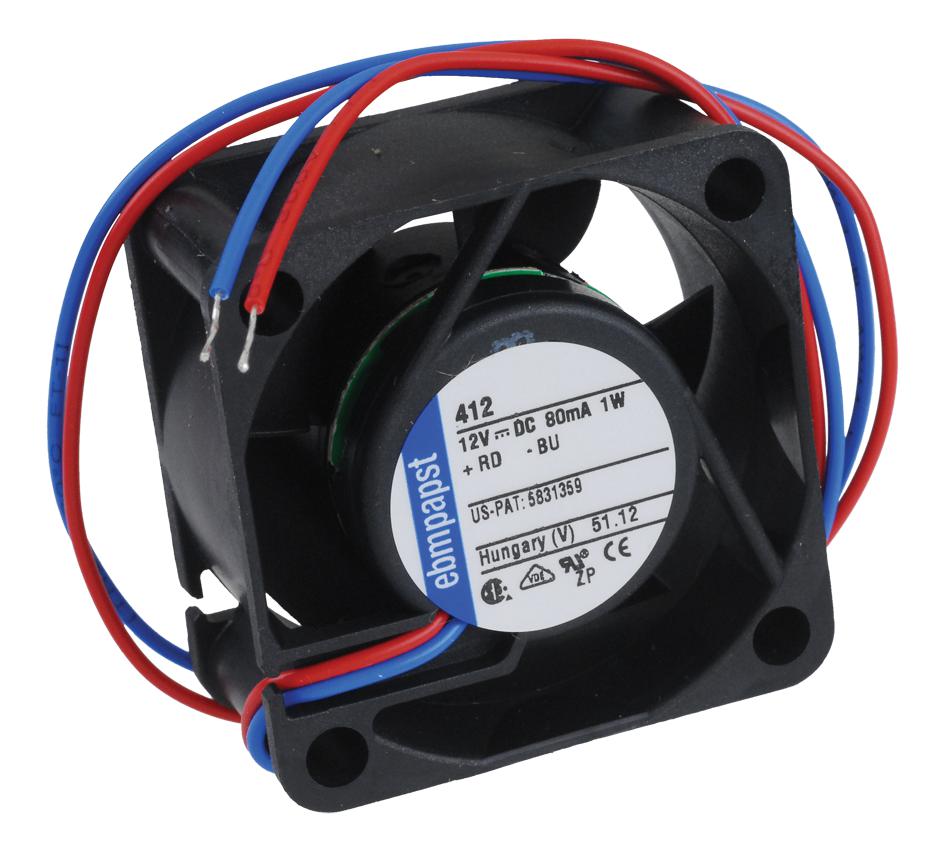

412 DC axial fan from Ebm-Papst, 40mm x 40mm x 20mm, rated for 12VDC operation with 6000 RPM speed and 10 m³/h airflow.
Mfr Part #:

412

Available from 1 distributors
Mfr Name: Ebm-Papst
Ebm-Papst
DC axial fan from Ebm-Papst, 40mm x 40mm x 20mm, rated for 12VDC operation with 6000 RPM speed and 10 m³/h airflow.
✓ Total Stock: 16 pcs
$ Price Range: $11.13 - $16.16

412 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

412 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Housing Material
Lead Style
Mounting Type
Noise
Operating Temperature
Power (Watts)
RPM
Termination
Termination Style
Voltage
Voltage Range
Weight
Width
View Similar Products (0)

412 Description

Short technical summary and product information.

The Ebm-Papst 412 is a compact DC axial fan designed for efficient thermal management in space-constrained applications. It operates at a nominal voltage of 12VDC with a permissible range of 10 to 14VDC, consuming 0.8W of power. The fan delivers an airflow of 10 m³/h (5.9 CFM) at a noise level of just 18 dB(A), making it suitable for noise-sensitive environments.



Constructed with a glass-fiber reinforced PA impeller and a glass-fiber reinforced PBT housing, the fan measures 40mm x 40mm x 20mm and weighs 27g. It features a Sintec sleeve bearing with a service life of 50,000 hours at 20°C and 20,000 hours at 60°C. The fan includes motor protection against reverse polarity and blocked rotor, and is terminated with two AWG 28 wire leads.



This fan is approved by VDE, CSA, and UL, and is designed for chassis mount installation. It is suitable for cooling electronics, telecommunications equipment, medical devices, and industrial control panels. The operating temperature range is -20°C to 70°C.

412 Quick Information

Product Type: DC Brushless Fan
Canonical Name: DC Axial Fan, 40mm x 40mm x 20mm, 12VDC, 6000 RPM, 10 m³/h
Subcategory: Tubeaxial Fan

412 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

412 Estimated Pricing

Qty Low High
1+ $16.16 $16.16
10+ $13.06 $13.06
30+ $12.85 $12.85
60+ $12.06 $12.06
510+ $11.13 $11.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

412 Features

  • 12VDC nominal voltage with 10-14VDC range.
  • 6000 RPM speed delivering 10 m³/h airflow.
  • Sintec sleeve bearing for 50000h service life at 20°C.
  • Compact 40x20mm square chassis mount package.
  • Low noise operation at 18 dB(A).

412 Applications

  • Cooling of electronic enclosures and cabinets.
  • Thermal management in telecommunications equipment.
  • Airflow in medical devices and instrumentation.
  • Ventilation in industrial control panels.

412 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the Ebm-Papst 412 fan?

12VDC nominal, with a range of 10 to 14VDC.

What are the dimensions of this fan?

40mm x 40mm x 20mm.

What is the operating temperature range?

-20°C to 70°C.

Is the fan RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the airflow rate?

10 m³/h (5.9 CFM).

What type of bearing does it use?

Sintec sleeve bearing.

What is the expected service life?

50000 hours at 20°C, 20000 hours at 60°C.
