| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Sound Pressure Level (SPL) | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

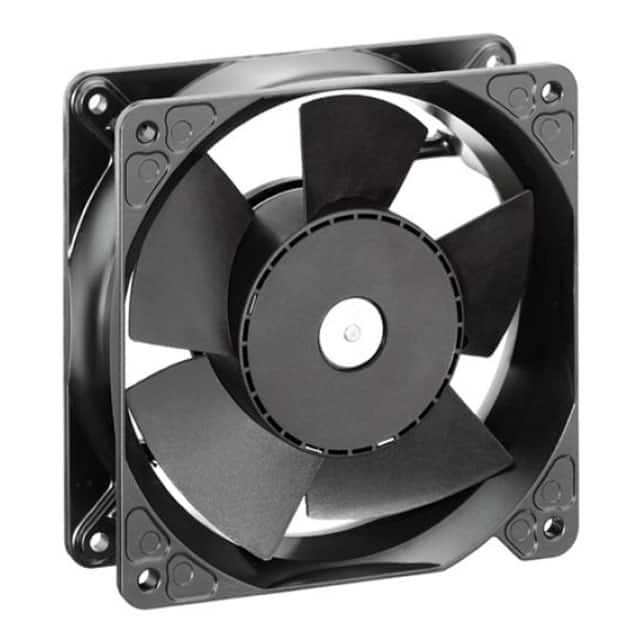

The ebm-papst 4112NHH is a DC axial compact fan designed for cooling applications. It operates at a nominal voltage of 12VDC with a voltage range of 9 to 15VDC. The fan delivers a speed of 5000 RPM and an airflow of 260 m³/h (approximately 152.9 CFM). Power consumption is 13.3W.
Mechanically, the fan measures 119 x 119 x 38 mm and weighs 0.390 kg. It features a die-cast aluminum housing and a glass-fiber reinforced PA plastic impeller. Airflow direction is intake over struts, and rotation is clockwise when viewed toward the rotor. The bearing type is ball, with a service life L10 of 70,000 hours at 40°C and 55,000 hours at maximum temperature. Operating temperature range is -20 to 65°C.
Electrical protection includes motor protection against reverse polarity and blocked rotor, as well as locked-rotor and overload protection. Termination is via 2 wire leads (AWG 22, UL 1007, TR 64, stripped and tin-plated). The fan is CE approved.
Mounting is flange mount (inferred). It is suitable for various cooling applications in electronics, telecommunications, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $92.93 | $92.93 |
| 10+ | $84.29 | $84.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage is 12VDC with a range of 9 to 15VDC.
-20 to 65°C.
RoHS3 compliant (unverified).
260 m³/h (approximately 152.9 CFM).
60 dB(A) sound pressure level.
Ball bearing.
CE approved.
