410-357-B The Digilent JTAG-SMT3-NC (410-357-B) is a compact surface-mount programming module for Xilinx FPGAs. It features a High-Speed USB 2.0 interface, JTAG bus speeds up to 30 Mbit/s, and a signal voltage range of 1.8V to 5.5V.
Mfr Part #:

410-357-B

Available from 1 distributors
Mfr Name: Digilent, Inc.
Digilent, Inc.
The Digilent JTAG-SMT3-NC (410-357-B) is a compact surface-mount programming module for Xilinx FPGAs. It features a High-Speed USB 2.0 interface, JTAG bus speeds up to 30 Mbit/s, and a signal voltage range of 1.8V to 5.5V.
✓ Total Stock: 12 pcs
$ Price Range: $59.97

410-357-B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

410-357-B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contents
For Use With
Form Factor
Mounting Type
Output Current
Tape & Reel
Termination Style
Type
View Similar Products (0)

410-357-B Description

Short technical summary and product information.

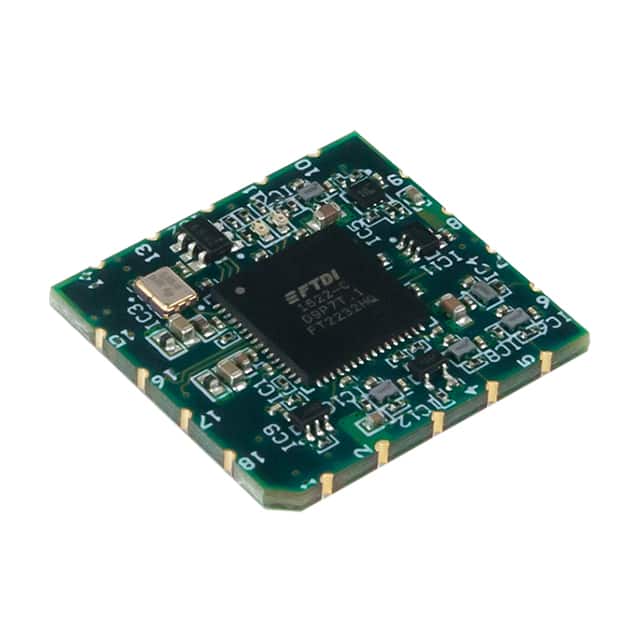

The Digilent JTAG-SMT3-NC (part number 410-357-B) is a fully self-contained surface-mount programming module designed for Xilinx FPGAs. It provides a complete JTAG programming and debugging solution with a UART side channel, compatible with Xilinx tools including iMPACT, Vivado, and ChipScope.



The module operates from a 3.3V main supply and supports an independent Vref from 1.8V to 5.5V for JTAG and UART signals. It delivers JTAG bus speeds up to 30 Mbit/s and UART speeds up to 12 Mbaud, using high-speed 24mA three-state buffers. The High-Speed USB 2.0 interface enables simultaneous access to both JTAG and UART channels.



The JTAG-SMT3-NC is designed for direct surface-mount reflow onto a target board. It is CE certified and fully compliant with EU RoHS and REACH directives.

410-357-B Quick Information

Product Type: Programmer (In-Circuit/In-System)
Series: JTAG-SMT3-NC
Canonical Name: Digilent JTAG-SMT3-NC Surface-Mount Programming Module for Xilinx FPGAs
Subcategory: In-Circuit/In-System Programmer

410-357-B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

410-357-B Estimated Pricing

Qty Low High
1+ $59.97 $59.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

410-357-B Features

  • Compact surface-mount module for Xilinx FPGAs.
  • High-Speed USB 2.0 interface for fast programming.
  • JTAG bus speed up to 30 Mbit/s.
  • Signal voltage range from 1.8V to 5.5V.
  • CE certified and RoHS3 compliant.

410-357-B Applications

  • Programming and debugging Xilinx FPGAs in-circuit.
  • Embedded systems development with UART side channel.
  • Integration into custom PCB designs for production.

410-357-B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the JTAG bus speed of the Digilent 410-357-B?

The maximum JTAG bus speed is 30 Mbit/s.

What is the supply voltage requirement for the JTAG-SMT3-NC?

The main supply voltage is 3.3V, and the Vref supply range is 1.8V to 5.5V.

Is the 410-357-B RoHS compliant?

Yes, it is fully compliant with EU RoHS directives (RoHS3).

What type of USB interface does the JTAG-SMT3-NC use?

It uses a High-Speed USB 2.0 interface.

Which FPGA families is the JTAG-SMT3-NC compatible with?

It is designed for use with Xilinx FPGAs.

What is the signal voltage range for JTAG and UART signals?

The signal voltage range is 1.8V to 5.5V for both JTAG and UART signals.
