| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current | |
| Current | |
| Forward Voltage | |
| Maximum Repetitive Peak Reverse Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

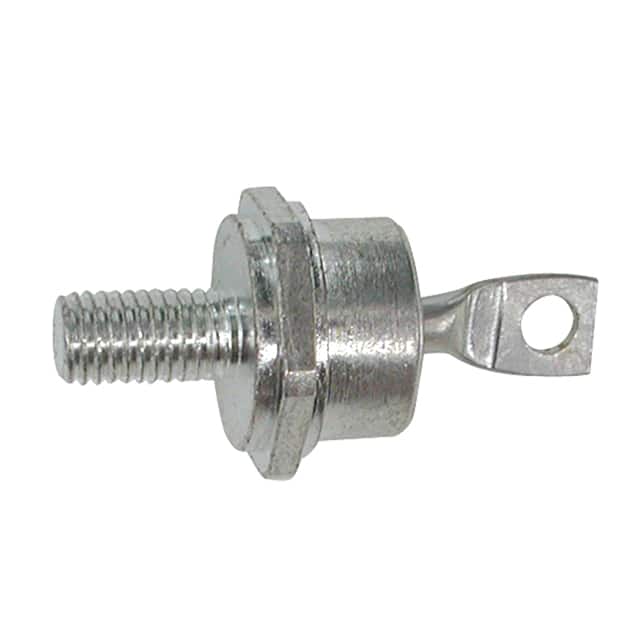

The 40HF100 is a standard recovery rectifier diode manufactured by Solid State Devices Inc (SSDI). It is designed for general purpose rectification in high-voltage applications. The diode is rated for a maximum repetitive peak reverse voltage of 1000V (1kV) and an average rectified current of 40A. The forward voltage is specified at 1.3V when conducting 40A forward current. The device features a standard recovery characteristic with a reverse recovery time greater than 500ns, making it suitable for applications where fast switching is not required.
The diode is housed in a DO-203AB (DO-5) stud mount package, which provides robust mechanical mounting and efficient heat dissipation. The operating temperature range spans from -65°C to 150°C, allowing use in demanding environments. The stud mount design facilitates easy installation on heat sinks or chassis.
Typical applications include power supply rectification, battery chargers, motor drives, and industrial power conversion equipment where high voltage and current capabilities are needed. The 40HF100 is a reliable choice for designs requiring a rugged, stud-mounted standard recovery diode.
1000V (1kV).
40A.
1.3V at 40A.
Standard recovery with trr >500ns.
DO-203AB (DO-5) stud mount.
-65°C to 150°C.
Stud mount.
