| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,790 pcs
|
1790 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Head Style | |
| Lead Style | |
| Material | |
| Mounting Hole Thread | |
| Mounting Type | |
| Plating | |
| Termination | |
| Termination Thread | |
| Type |

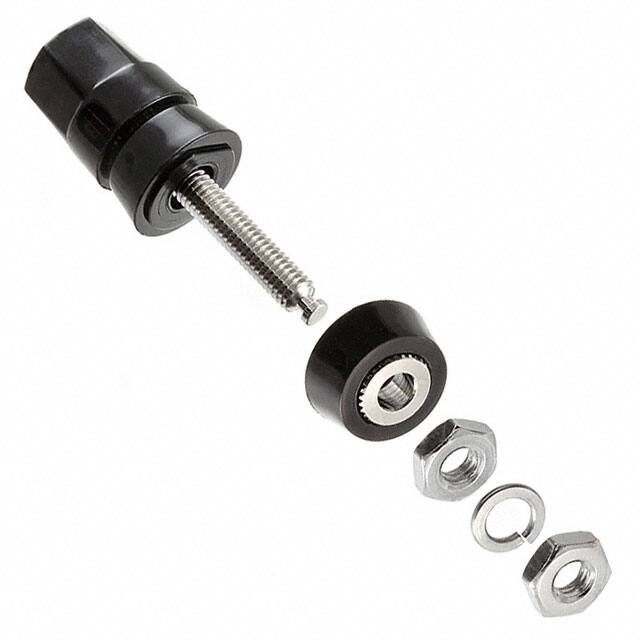

The Keystone Electronics 4094 is a standard hex head binding post designed for high-current applications. It is rated for 30A and 1000V AC working voltage, making it suitable for power supplies, audio circuitry, RF circuits, and oscilloscopes. The stud is made of nickel-plated brass per ASTM B-16, and the insulation is black nylon. The binding post features a captivated hex head for safety and anti-rotation stud mounting. It accepts .175" banana plugs, .080" tip plugs, spade lugs, alligator clips, wires, and EZ hooks. The termination is threaded and turret with a 10-32 thread, and it mounts to a panel with a 10-32 mounting hole. This part is RoHS compliant.
30 A.
1000 V AC working.
Panel mount with 10-32 thread.
Black.
Brass per ASTM B-16.
Nickel.
Threaded and turret with 10-32 thread.
