| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Head Style | |
| Insulation Material | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Plating | |
| Termination | |
| Termination Thread | |
| Thread Size | |
| Type | |
| Voltage Rating |

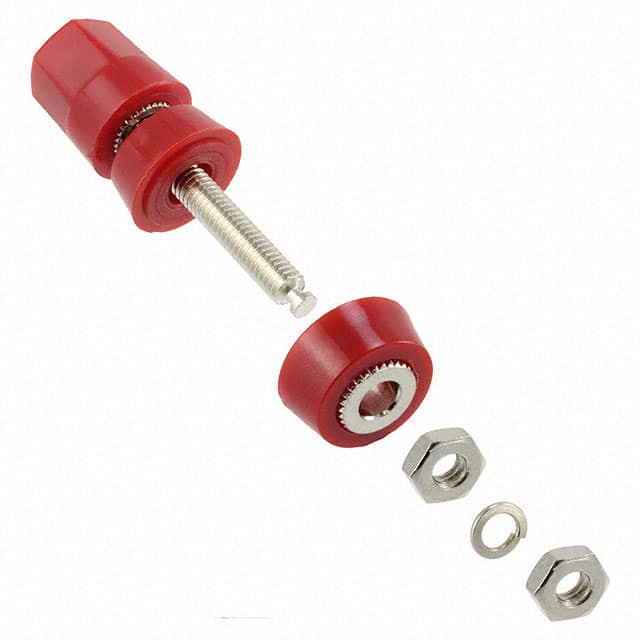

The Keystone Electronics 4093 is a standard binding post designed for high-current applications requiring reliable electrical connections. Rated for 30 amps at 1000V AC working voltage, this red binding post features a captivated hex head that prevents accidental contact with current-carrying parts. The stud is constructed from brass per ASTM B-16 with nickel plating, providing good conductivity and corrosion resistance. Nylon insulation ensures electrical isolation between the post and mounting panel.
Termination is via a 10-32 threaded stud and turret, accepting banana plugs (0.175" diameter), tip plugs (0.080" diameter), spade lugs, alligator clips, wires, and EZ hooks. The panel mount design includes anti-rotation features for secure installation. This binding post is suitable for use in audio circuitry, RF circuitry, oscilloscopes, power supplies, and various test equipment applications.
The 4093 is RoHS3 compliant and REACH unaffected. It is part of Keystone's standard hex head binding post series, available in multiple colors for easy identification.
30 amps.
1000V AC working voltage.
10-32.
Panel mount.
Brass stud with nickel plating and nylon insulation.
Threaded and turret.
Red.
