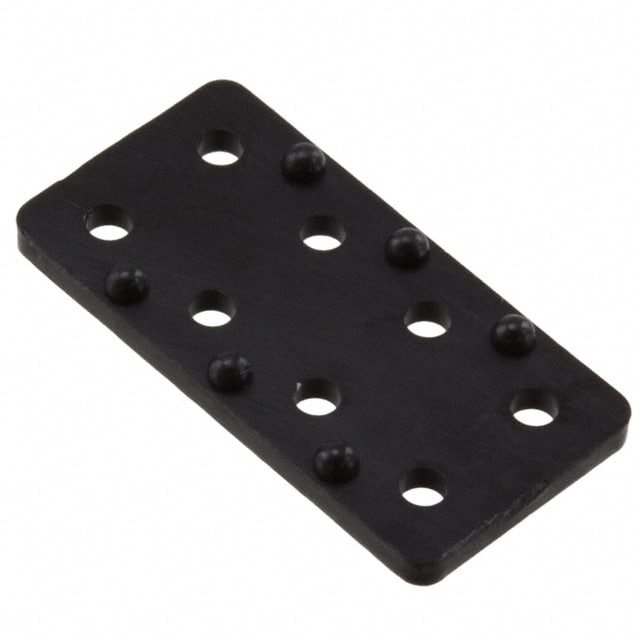

408-080 Rectangular general purpose mount made of Nylon 6/6, black, with 0.080" (2.03mm) height, through hole mounting.
Mfr Part #:

408-080

Available from 1 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
Rectangular general purpose mount made of Nylon 6/6, black, with 0.080" (2.03mm) height, through hole mounting.
✓ Total Stock: 14 pcs

408-080 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

408-080 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Material
Mounting Type
SVHC Present
Shape
Tape & Reel
Type
Usage
Width
View Similar Products (0)

408-080 Description

Short technical summary and product information.

The Bivar 408-080 is a rectangular nylon mount designed for general purpose through hole applications. It is manufactured from Nylon 6/6 material in black color, with a UL94 V-2 flammability rating.



Dimensions are 20.32mm (0.800") in length, 10.16mm (0.400") in width, and 2.03mm (0.080") in height. The mount features a 1.5mm (0.060") hole diameter with a 2.0mm (0.080") countersink on the far side.



It is designed for through hole mounting with a dual in-line configuration, making it suitable for insulating and spacing electronic components. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

408-080 Quick Information

Product Type: Component Mount
Series: Perm-O-Pad
Canonical Name: Bivar 408-080 Rectangular Nylon 6/6 Mount, 20.32mm x 10.16mm x 2.03mm, Through Hole
Subcategory: Component Insulators, Mounts, Spacers

408-080 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

408-080 Features

  • Rectangular Nylon 6/6 mount in black.
  • Through hole mounting with dual in-line design.
  • UL94 V-2 flame retardant rating.
  • 20.32mm length by 10.16mm width.
  • 1.5mm hole diameter with 2.0mm countersink.

408-080 Applications

  • Mounting and spacing PCB components.
  • Insulating components from board surface.
  • General purpose electronic assembly.
  • Through hole component securement.

408-080 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the material of the Bivar 408-080 mount?

The mount is made of Nylon 6/6, black color.

What are the dimensions of the 408-080 mount?

Length 20.32mm, width 10.16mm, height 2.03mm.

Is the 408-080 RoHS compliant?

Yes, it is RoHS3 compliant (verified from existing database).

What is the flammability rating of the 408-080?

UL94 V-2.

What is the mounting type for the 408-080?

Through hole mounting, dual in-line.

What is the hole diameter of the 408-080?

1.5mm with a 2.0mm countersink.
