| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,465 pcs
|
2465 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Type | |
| Width |

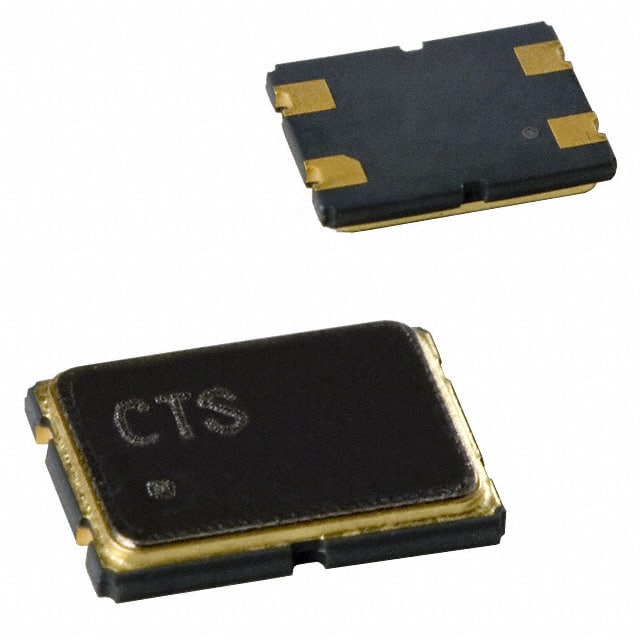

The CTS Model 407 quartz crystal (part number 407F39E008M0000) is a high-Q surface mount resonator designed for commercial and industrial applications. It operates at a fundamental frequency of 8 MHz with a frequency tolerance of ±30ppm and frequency stability of ±50ppm over the -40°C to +85°C temperature range.
The crystal features a 20pF load capacitance and low equivalent series resistance of 60 Ω, making it suitable for clock generation in microcontrollers, wireless communications, and IoT devices. The device is housed in a 4-SMD, no-lead ceramic package measuring 7.00mm x 5.00mm with a seated height of 1.30mm, and is supplied on tape and reel per EIA-481.
Its hermetic construction and wide operating temperature range support reliable performance in portable equipment, FPGA/MCU systems, and broadband access equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.69 | $0.69 |
| 25+ | $0.65 | $0.65 |
| 50+ | $0.62 | $0.62 |
| 100+ | $0.60 | $0.60 |
| 250+ | $0.57 | $0.57 |
| 500+ | $0.54 | $0.54 |
| 1,000+ | $0.52 | $0.52 |
| 2,000+ | $0.50 | $0.50 |
| 3,000+ | $0.49 | $0.49 |
| 5,000+ | $0.47 | $0.47 |
| 7,000+ | $0.46 | $0.46 |
| 10,000+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency tolerance is ±30ppm at 25°C.
The load capacitance is 20pF.
The operating temperature range is -40°C to +85°C.
The crystal is in a 4-SMD, No Lead package measuring 7.00mm x 5.00mm x 1.30mm.
The part is listed as RoHS3 Compliant, though the datasheet does not contain an explicit RoHS statement.
