| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

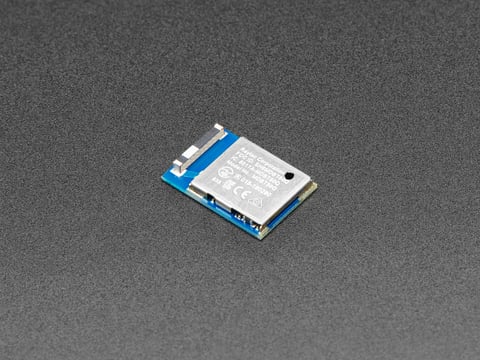

The Adafruit Industries LLC 4078 is an ultra-compact RF Transceiver Module designed for custom PCB applications requiring Bluetooth Low Energy. It is built around the Nordic nRF52840 Cortex M4 chip, which integrates a Bluetooth Low Energy radio, native USB support, and a chip antenna.
This module operates in the 2.4GHz frequency band and supports Bluetooth v5.0 with a data rate of 2Mbps. It offers a sensitivity of -103dBm and a power output of 8dBm. The module supports a wide operating voltage range from 1.7V to 5.5V and operates within a temperature range of -40°C to 85°C. It provides various serial interfaces including ADC, I²C, I²S, PWM, SPI, UART, and USB, eliminating the need for an external USB-to-serial converter.
Designed for surface mounting, this module requires a stencil and reflow soldering process due to its under-pads instead of castellated pads. It comes with FCC, CE, and TELEC certifications. The module is supplied with a blank chip, intended for users comfortable programming with the Nordic SDK and an SWD programmer. It is compatible with Arduino and CircuitPython environments, and also supported by MyNewt.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.95 | $12.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.7V to 5.5V.
The operating temperature range is -40°C to 85°C.
This module supports Bluetooth v5.0.
The sensitivity is -103dBm.
The module features an integrated chip antenna.
Available serial interfaces include ADC, I²C, I²S, PWM, SPI, UART, and USB.
