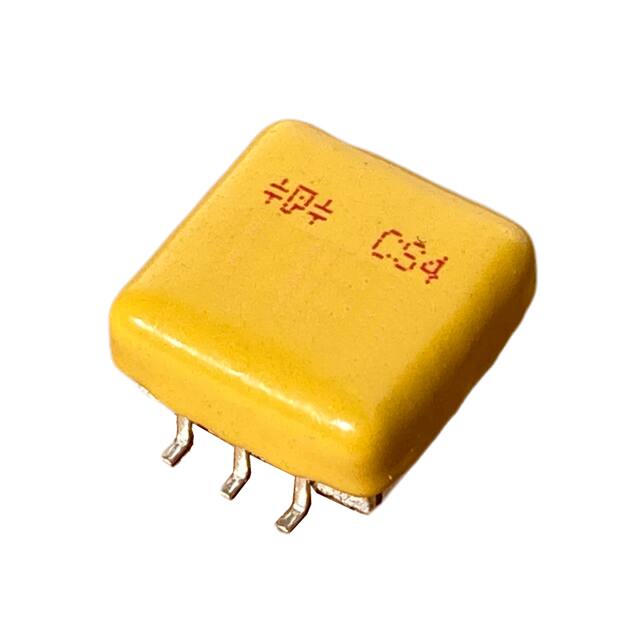

405K100CS4G ITW Paktron 405K100CS4G is a 4 µF, 100V, ±10% metallized polyester film capacitor in a 6-SMD Gull Wing package. It features low ESR (7 mΩ) and a wide operating temperature range of -55°C to 125°C.
Mfr Part #:

405K100CS4G

Available from 1 distributors
Mfr Name: ITW Paktron
ITW Paktron
ITW Paktron 405K100CS4G is a 4 µF, 100V, ±10% metallized polyester film capacitor in a 6-SMD Gull Wing package. It features low ESR (7 mΩ) and a wide operating temperature range of -55°C to 125°C.
✓ Total Stock: 35 pcs

405K100CS4G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request 0725 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

405K100CS4G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
ESR (Equivalent Series Resistance)
Features
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Package / Case
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

405K100CS4G Description

Short technical summary and product information.

The ITW Paktron 405K100CS4G is a surface-mount metallized polyester film capacitor designed for EMI/RFI suppression and high pulse, high dv/dt applications. It offers a nominal capacitance of 4 µF with a voltage rating of 100V and a tolerance of ±10%.



This capacitor features a very low equivalent series resistance (ESR) of 7 mΩ, making it suitable for high-frequency filtering and snubber circuits. It is rated for continuous operation from -55°C to 125°C, accommodating demanding thermal environments.



The component is housed in a 6-SMD Gull Wing package with a lead spacing of 10.00 mm. Its compact dimensions (11.40 mm length, 12.70 mm width, 6.30 mm height) enable dense PCB layouts. The gull wing terminations provide reliable solder joint inspection.

405K100CS4G Quick Information

Product Type: Film Capacitor
Canonical Name: ITW Paktron 405K100CS4G Metallized Polyester Film Capacitor, 4 µF, 100V, ±10%, 6-SMD Gull Wing
Subcategory: Metallized Polyester Film Capacitor

405K100CS4G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 4
REACH Status: Non-Compliant

405K100CS4G Features

  • 4 µF capacitance with ±10% tolerance.
  • Rated for 100V DC operation.
  • Low 7 mΩ equivalent series resistance.
  • Metallized polyester dielectric construction.
  • Surface mount 6-SMD Gull Wing package.

405K100CS4G Applications

  • EMI and RFI suppression circuits.
  • High pulse and high dv/dt applications.
  • Snubber and filtering in power electronics.
  • General purpose DC link and coupling.

405K100CS4G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the 405K100CS4G?

The capacitance is 4 µF.

What is the voltage rating of this capacitor?

The voltage rating is 100V.

What is the tolerance of the 405K100CS4G?

The tolerance is ±10%.

What dielectric material is used in this capacitor?

The dielectric material is metallized polyester.

What is the package type for the 405K100CS4G?

The package is 6-SMD, Gull Wing.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the ESR of this capacitor?

The equivalent series resistance is 7 mΩ.
