The CTS-Frequency Controls 405C11A11M05920 is a fundamental mode MHz crystal with a nominal frequency of 11.0592 MHz. It offers a frequency tolerance of ±10ppm and frequency stability of ±10ppm, ensuring precise timing in electronic circuits. The crystal requires a load capacitance of 10 pF and has a maximum equivalent series resistance (ESR) of 60 Ω.

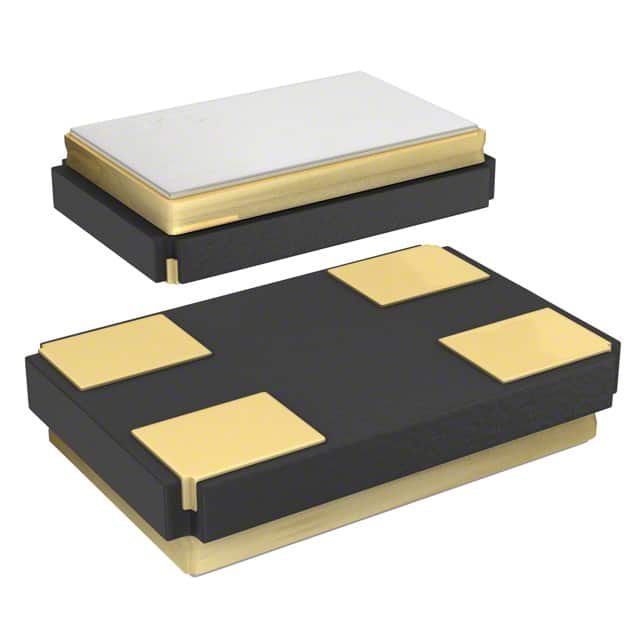

This crystal is housed in a compact 4-SMD, No Lead package measuring 5.00mm x 3.20mm with a height of 1.00mm, making it suitable for space-constrained surface mount applications. It operates over a temperature range of -20°C to 70°C.
Commonly used in microcontroller clock circuits, communication interfaces, and timing reference applications, this crystal provides a stable and reliable clock source for digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.77 | $0.77 |
| 25+ | $0.73 | $0.73 |
| 50+ | $0.70 | $0.70 |
| 100+ | $0.67 | $0.67 |
| 250+ | $0.64 | $0.64 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.58 | $0.58 |
| 3,000+ | $0.57 | $0.57 |
| 5,000+ | $0.55 | $0.55 |
| 7,000+ | $0.54 | $0.54 |
| 10,000+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The crystal has a nominal frequency of 11.0592 MHz.
The frequency tolerance is ±10 ppm.
The required load capacitance is 10 pF.
The operating temperature range is -20°C to 70°C.
It is available in a 4-SMD, No Lead surface mount package.
The maximum ESR is 60 Ω.
