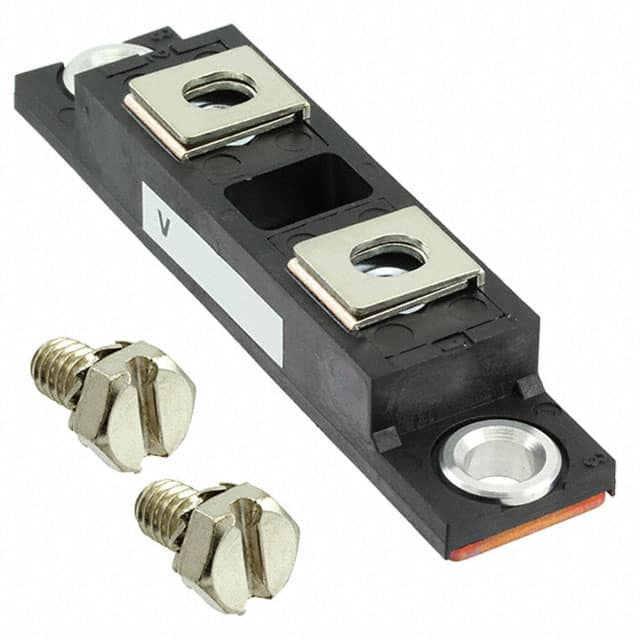

The 403CNQ100 is a high-current Schottky rectifier array from SMC Diode Solutions, part of the 403CNQ series. It integrates two Schottky diodes in a common cathode configuration, each rated for 200A average rectified forward current (400A per device) with a repetitive peak reverse voltage of 100V. The device exhibits a low forward voltage drop of 0.83V maximum at 200A and 25°C, and a typical junction capacitance of 5340 pF at 5V.
Designed for high-frequency operation, the 403CNQ100 features fast recovery (≤500ns) and a wide operating junction temperature range from -55°C to 175°C. It is capable of handling non-repetitive surge currents up to 3960A per leg. The module is housed in a PRM4 package (non-isolated) with a nickel-plated base plate and terminals, suitable for chassis mount applications with recommended mounting torque between 3.84 and 4.80 Nm.
This rectifier array is suitable for applications such as high-current switching power supplies, plating power supplies, free-wheeling diodes, reverse battery protection, converters, UPS systems, and welding equipment. The device is lead-free (Pb-Free) and RoHS3 compliant (unverified), with an MSL level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $78.30 | $78.30 |
| 18+ | $58.08 | $58.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage is 100V.
The average rectified forward current is 200A per leg, 400A per device.
The forward voltage is 0.83V maximum at 200A forward current and 25°C.
The device features fast recovery with a speed of ≤500ns at >200mA.
The device is packaged in a PRM4 (Non-Isolated) module for chassis mount.
The operating junction temperature range is -55°C to 175°C.
The non-repetitive peak surge current is 3960A per leg (8.3 ms half sine pulse).
