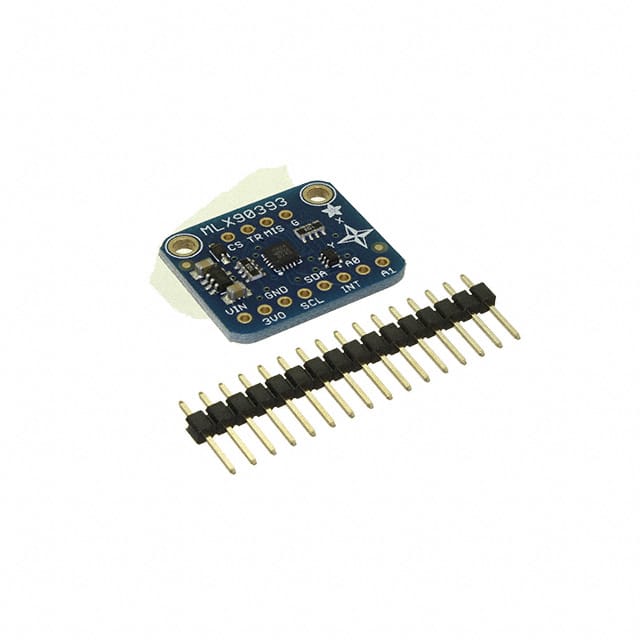

The Adafruit 4022 is a breakout board featuring the MLX90393 wide-range magnetometer from Melexis. It measures magnetic fields in three axes (X, Y, Z) with 16-bit resolution, providing high sensitivity across a programmable measurement range from ±5 mT to ±50 mT. This makes it ideal for detecting strong magnetic fields from permanent magnets rather than Earth's weak field.
The board communicates via I²C (serial interface) with a user-adjustable address, allowing up to four sensors on a single bus. It operates from 3V to 5V supply voltage and includes level shifting for compatibility with both 3.3V and 5V microcontrollers. The breakout board is assembled and tested, with through-hole header pins for breadboard prototyping and STEMMA QT connectors for solderless I²C connections.
The package is a breakout board with through-hole mounting and male pin headers. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The maximum sampling rate is 500 Hz. Power and I²C lines are clearly marked on the board for easy integration.
3V to 5V.
Breakout Board with through-hole mounting and male pin headers.
Yes, RoHS3 compliant (unverified).
±5 mT to ±50 mT, programmable.
I²C (serial interface) with user-adjustable address.
16-bit.
Up to 4 sensors with different addresses.
