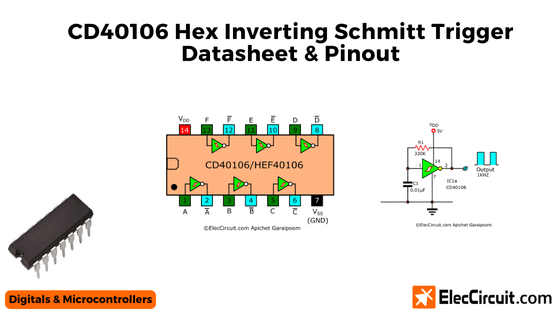

The 40106 by Würth Elektronik is a hex inverting Schmitt trigger integrated circuit. Manufactured using CMOS technology, this IC contains six independent inverting Schmitt trigger gates. It is designed to operate with an input voltage range of 3V to 18V, with a recommended maximum of 15V.
Key features include Schmitt-trigger action that requires no external components, hysteresis voltages of 0.9V, 2.3V, and 3.5V at 5V, 10V, and 15V inputs respectively, and noise immunity greater than 50%. The device also boasts symmetrical outputs and no limit on input rise and fall times. Its rated operating temperature spans from -40°C to 125°C.
Each inverter gate can supply a current of approximately 10mA. The chip has a typical supply current of 50mA and a power dissipation of 500mW. The 40106 is commonly used in applications such as wave and pulse shapers, astable multivibrators, monostable multivibrators, and systems operating in high-noise environments.
Equivalent parts include CD40106B, MC140106, HEF40106, TC40106BP, HCF40106, and NTE40106, though voltage or current ratings may vary slightly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 18V, with a recommended maximum of 15V.
The operating temperature range is -40°C to 125°C.
Hysteresis voltage is 0.9V at 5V input, 2.3V at 10V input, and 3.5V at 15V input.
The typical supply current is 50mA.
Noise immunity is greater than 50%.
Typical power dissipation is 500mW.
