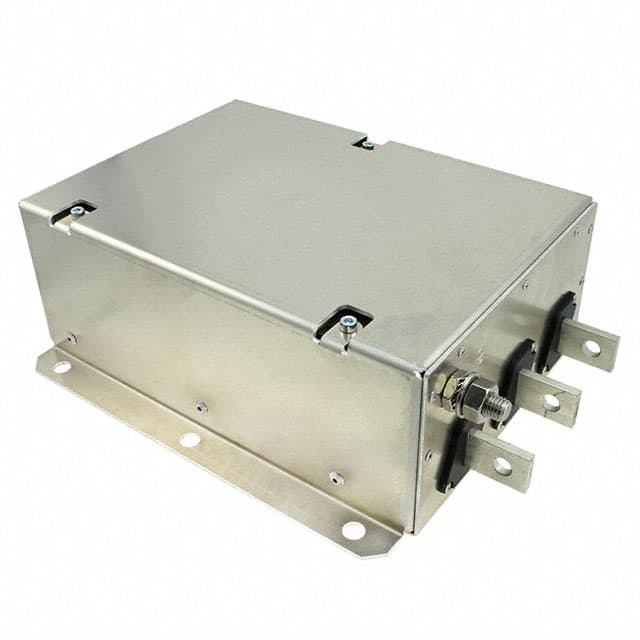

400APH12L Three-phase (delta) power line filter rated for 400 A and 520 VAC, operating at 50/60 Hz. Chassis mount with terminal post terminations.
Mfr Part #:

400APH12L

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Three-phase (delta) power line filter rated for 400 A and 520 VAC, operating at 50/60 Hz. Chassis mount with terminal post terminations.
✓ Total Stock: 1 pcs
$ Price Range: $1,433.00

400APH12L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

400APH12L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Configuration
Current
Failure Rate
Filter Type
Frequency
Height
Length
Mounting Type
Operating Temperature
Termination Style
Voltage
Width
View Similar Products (0)

400APH12L Description

Short technical summary and product information.

The TE Connectivity 400APH12L is a three-phase (delta) power line filter from the Corcom APH series, designed for high-current applications up to 400 A. It operates at a rated voltage of 520 VAC and a frequency of 50/60 Hz, making it suitable for industrial power systems.



This filter features a three-stage configuration and provides effective EMI filtering with a nominal leakage current of 6 mA and a maximum leakage current of 222 mA at 277 V, 50 Hz. It is rated for hipot testing at 2200 VDC line-to-ground and 2160 VDC line-to-line for one minute.



The 400APH12L is chassis mounted with terminal post terminations and includes 6 x 25 mm bus bars. Its compact dimensions are 300 mm length, 210 mm width, and 115 mm height, and it operates over a temperature range of -10°C to 50°C.



This filter is intended for general purpose use, suitable for motor drives, alternative energy inverters, and CNC machines, where reliable EMI suppression is required.

400APH12L Quick Information

Product Type: Power Line Filter Module
Series: APH
Canonical Name: Three Phase (Delta) Power Line Filter, 400 A, 520 VAC
Subcategory: Three Phase (Delta) EMI Filter

400APH12L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

400APH12L Estimated Pricing

Qty Low High
1+ $1,433.00 $1,433.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

400APH12L Features

  • Three-phase delta wiring configuration.
  • Rated for 400 A and 520 VAC.
  • Three-stage EMI filtering design.
  • Chassis mount with terminal posts.
  • Compact 300 x 210 x 115 mm size.

400APH12L Applications

  • Suitable for motor drive applications.
  • Used in alternative energy inverters.
  • Ideal for CNC machine power lines.
  • General purpose three-phase EMI filtering.

400APH12L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current of the 400APH12L?

The rated current is 400 A.

What is the operating voltage of the 400APH12L?

The operating voltage is 520 VAC.

What is the operating temperature range?

The operating temperature range is -10°C to 50°C.

Is the 400APH12L RoHS compliant?

Yes, the 400APH12L is marked as RoHS3 compliant, though this is unverified.

What is the leakage current of the 400APH12L?

The nominal leakage current is 6 mA, and the maximum leakage current is 222 mA at 277 V, 50 Hz.

What are the hipot ratings for the 400APH12L?

The hipot rating is 2200 VDC line-to-ground and 2160 VDC line-to-line for one minute.

What is the mounting type and termination style?

The filter is chassis mounted with terminal post terminations.
