| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

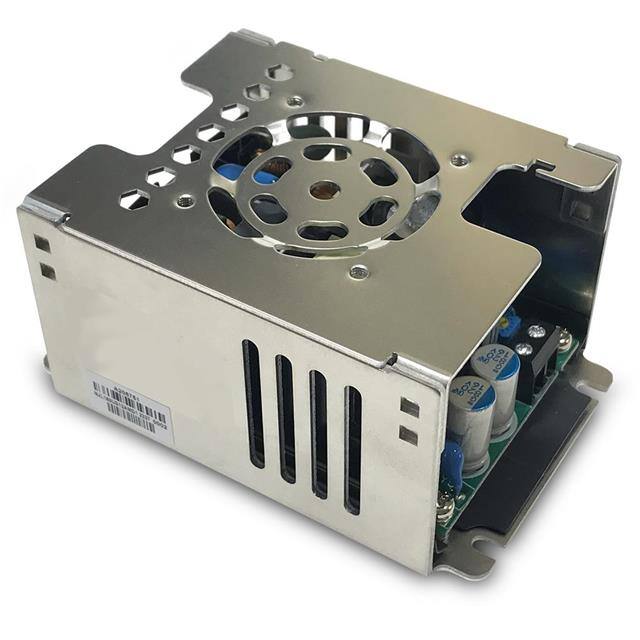

The N2Power 400612-01-6 is an enclosed AC DC converter with a chassis mount, suitable for ITE (Commercial) applications. This model delivers 150W of power, with a forced air rating of 180W, and an output current of 12.5A. It operates with an efficiency of 94% and features adjustable output, DC input capability, a standby output, and universal input.
The operating temperature range for this converter is -40°C to 85°C, with derating. It meets standard number 62368-1 and is approved by CB, CE, cURus, and FCC. The voltage rating is 3 kV. The part is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
Key specifications include a single output, a wide operating temperature range, and high efficiency, making it a versatile choice for various power supply needs.
The N2Power 400612-01-6 provides 150W of power, with a rating of 180W under forced air conditions.
The operating temperature range is -40°C to 85°C, with derating.
This converter features a chassis mount.
Yes, the RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
