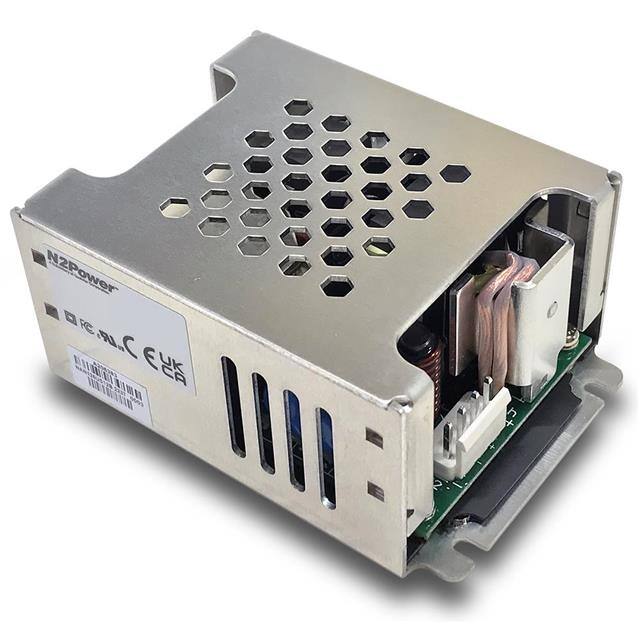

The N2Power 400582-17-7 is an enclosed AC/DC converter with a conformal coating, designed for ITE (Commercial) applications. It provides a single 48V output with a current rating of 2.09A, delivering 100W of power (125W forced air).
This converter operates with a wide input voltage range of 80-264 VAC or 120-370 VDC and boasts an efficiency of 92%. Key features include adjustable output, DC input capability, standby output, and universal input. The isolation voltage is rated at 4 kV.
Designed for chassis mounting, the N2Power 400582-17-7 operates within a temperature range of -40°C to 85°C with derating. It meets the standard number 62368-1 and is approved by CB, CE, cURus, and FCC.
The product is packaged in Tape & Box (TB) format and has a moisture sensitivity level of 1.
The N2Power 400582-17-7 provides a single output voltage of 48V.
The maximum output current for the 48V output is 2.09A.
The power rating is 100W, with a forced air rating of 125W.
The operating temperature range is -40°C to 85°C, with derating.
Key features include adjustable output, DC input capability, standby output, and universal input.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
