| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

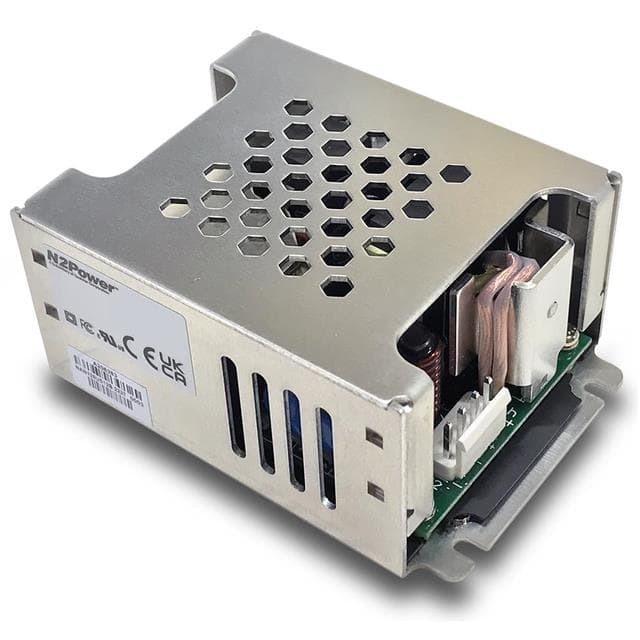

This N2Power 400582-14-4 is an AC DC converter designed for ITE (Commercial) applications. It features an enclosed, conformal coated construction with a chassis mount type.
The converter offers a power output of 100W, which can be boosted to 125W with forced air. It delivers 4.17A of current and operates with an efficiency of 92%. Key features include adjustable output, DC input capability, a standby output, and universal input voltage.
Operating within a wide temperature range of -40°C to 85°C (with derating), this unit is built to withstand demanding environments. It meets the standard number 62368-1 and carries approvals from CB, CE, cURus, and FCC.
Additional specifications include a voltage rating of 4 kV and a single output. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The package is enclosed, conformal coated and designed for chassis mount.
-40°C to 85°C with derating.
100W (125W with forced air).
4 kV.
CB, CE, cURus, FCC.
92%.
1 output.
