| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage |

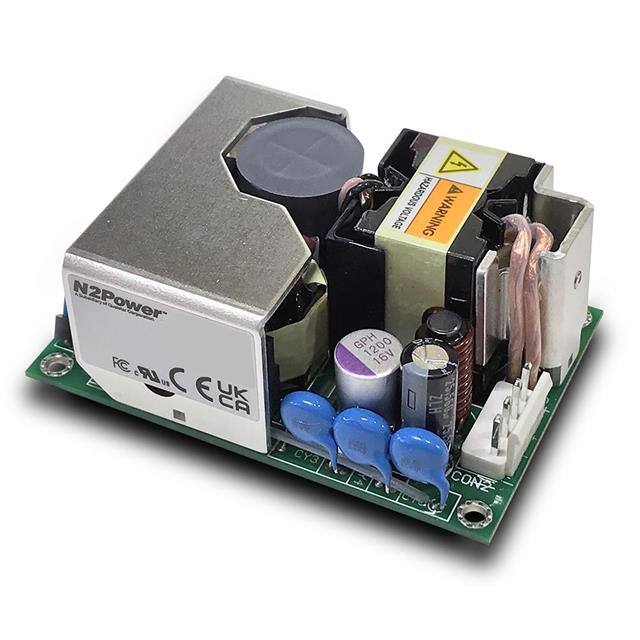

The N2Power 400580-07-2 is an AC DC converter designed for ITE (Commercial) applications. This open frame unit features conformal coating and chassis mounting.
Key electrical specifications include a power output of 100W, which can be boosted to 125W with forced air, and a current rating of 2.09A. It operates with 92% efficiency and offers features such as adjustable output, DC input capability, a standby output, and universal input voltage.
The converter is designed to operate within a temperature range of -40°C to 85°C, with derating at higher temperatures. It meets the standard IEC 62368-1 and is approved by agencies including CB, CE, cURus, and FCC.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The unit is designed for reliable performance in commercial IT equipment.
The operating temperature range is -40°C to 85°C with derating.
The efficiency is 92%.
The output current is 2.09 A.
The isolation voltage rating is 4 kV.
It uses chassis mount.
It is approved by CB, CE, cURus, and FCC.
