Mfr Part #:

400525-06-0

Mfr Name: N2Power

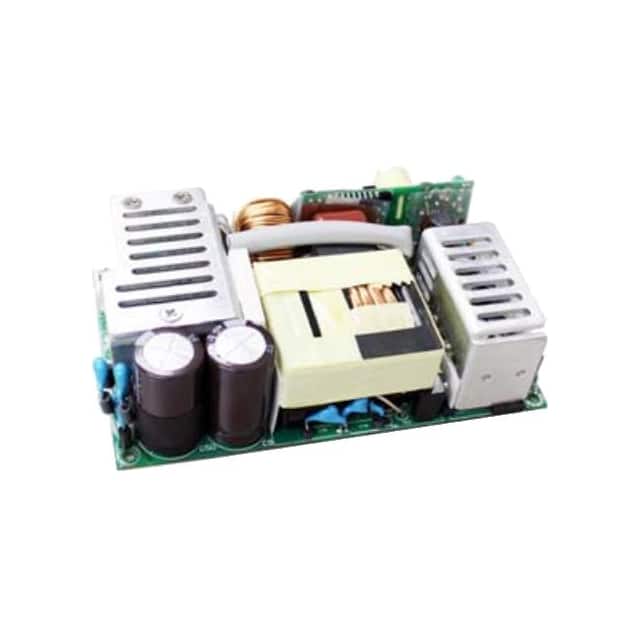

The N2Power 400525-06-0 is an open-frame AC/DC converter designed for chassis mounting. It provides 240W of power, with a forced air rating of 499W, and delivers 10A output current.

Stock on Request

400525-06-0 Description

Short technical summary and product information.

This N2Power 400525-06-0 is an open-frame AC/DC converter suitable for ITE (Commercial) and Medical applications. It features a chassis mount type and operates with a universal input, offering PFC and a standby output. The converter delivers 240W of power under natural convection and up to 499W with forced air, with a maximum output current of 10A.

Key electrical specifications include a 4 kV voltage rating and 93% efficiency. The dimensions are 127.0mm x 84.6mm x 38.1mm. It operates within a temperature range of -30°C to 70°C with derating. The unit is compliant with standards such as 60601-1, 60950-1, and 62368-1, and carries CE, cURus approvals.

400525-06-0 Quick Information

Product Type: AC/DC Converter

Canonical Name: N2Power 400525-06-0 AC/DC Converter

Subcategory: AC/DC Converters

400525-06-0 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

400525-06-0 Features

Open-frame AC/DC converter for chassis mounting.
Provides 240W (499W forced air) output power.
Delivers 10A maximum output current.
Features universal input with PFC and standby output.
Compliant with medical and ITE safety standards.

400525-06-0 Applications

Suitable for commercial ITE equipment.
Ideal for medical device power supply.
Used in industrial control systems.
Applicable for forced air cooled systems.
Designed for global universal input.

400525-06-0 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the 400525-06-0?

-30°C to 70°C with derating.

What is the power rating of the 400525-06-0 AC/DC converter?

240W continuous, 499W with forced air cooling.

What is the efficiency of the converter?

93%.

What approvals does the 400525-06-0 have?

CE, cURus.

What is the isolation voltage?

4 kV.

What are the dimensions of the converter?

127mm x 84.6mm x 38.1mm.

What applications is it suitable for?

ITE (Commercial) and Medical.

Category	AC DC Converters
Manufacturer Name	N2Power
Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus
Current	10 A
Efficiency	93%
Features	PFC, Standby Output, Universal Input
Height	38.1mm (1.50")
Length	127.0mm (5.00")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 70°C (With Derating)
Power (Watts)	240W (499W Forced Air)
SVHC Present	Not Present
Standard Number	60601-1; 60950-1; 62368-1
Type	Open Frame
Voltage	4 kV
Width	84.6mm (3.33")
