| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

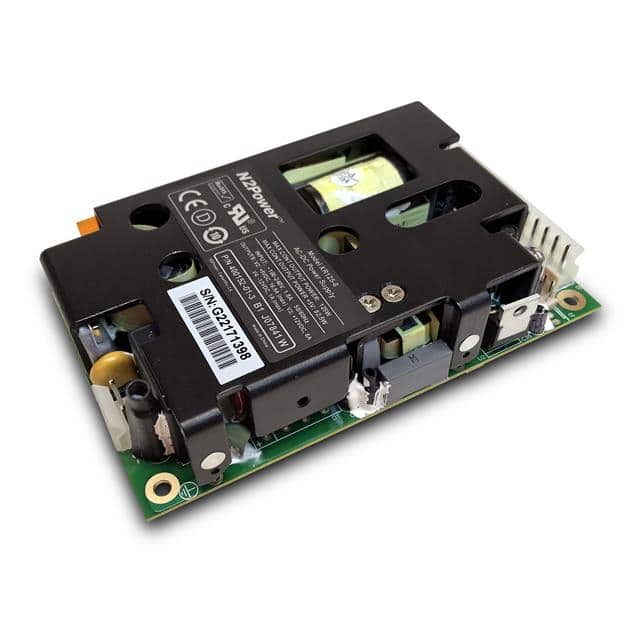

This N2 Power 400152-01-3 is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a total power of 167W and accepts a universal input voltage range of 100 to 240 VAC.
The converter features three distinct outputs: 5V at 16.5A, 12V at 6A, and -12V at 1A. It boasts an efficiency of 91% and operates within a temperature range of -25°C to 70°C with derating. Key features include load sharing, PFC, remote sense, and standby output.
With dimensions of 127.0mm x 76.2mm x 33.6mm, it is suitable for chassis mounting. The unit is approved by CE and cURus, meeting standards such as 60950-1 and 62368-1. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
100 to 240 VAC.
5V, 12V, and -12V.
-25°C to 70°C with derating.
Open frame, chassis mount.
91%.
CE and cURus, compliant with 60950-1 and 62368-1.
167W.
