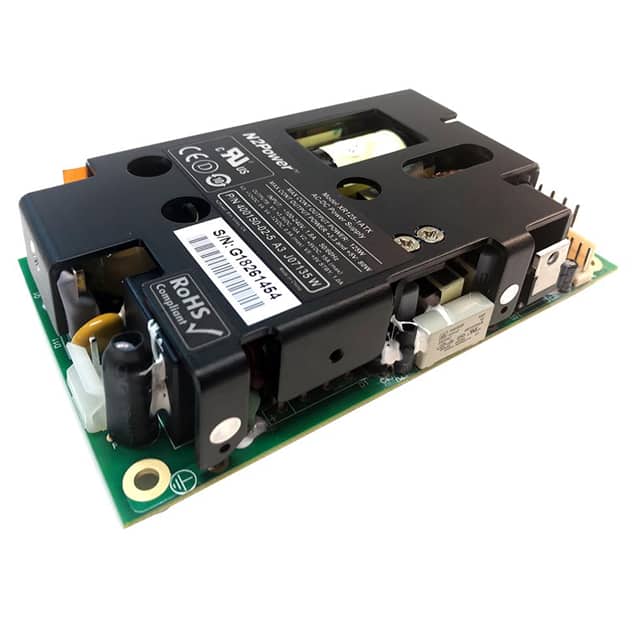

The N2Power XR125 AC-DC Series, including the 400150-01-7 model, offers ultrasmall, high-efficiency power supplies designed for OEM applications using industry-standard 1U chassis. These power supplies provide up to 192W of power with a high power density of 6.7 W/in³ and an efficiency rating of up to 91%, reducing energy losses and consumption.
The XR125 series features universal AC input (90-264 VAC) and Active Power Factor Correction (PFC) for superior efficiency. Key features include an adjustable output, remote sense, and universal input. The compact footprint measures 3" x 5" with a height profile of less than 1U (1.32"). Optional OR-ing diodes/MOSFETs for N+1 configurations and single-wire current sharing are available on most models.
Designed for ITE (Commercial) applications, these converters meet various safety and EMC standards including UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, FCC Part 15, and EN 61204-3 Class B. The operating temperature range is -25°C to 70°C. The product comes with a three-year warranty.
The 400150-01-7 provides 192W of power.
This AC-DC converter offers up to 91% efficiency.
It supports universal AC input, ranging from 90-264 VAC.
The power supply has a footprint of 3" x 5" and a height profile of 1.32" (<1U).
The operating temperature range is -25°C to 70°C.
Yes, it incorporates Active PFC technology for the 90-264 VAC input range.
It complies with UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, FCC Part 15, and EN 61204-3 Class B.
