| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

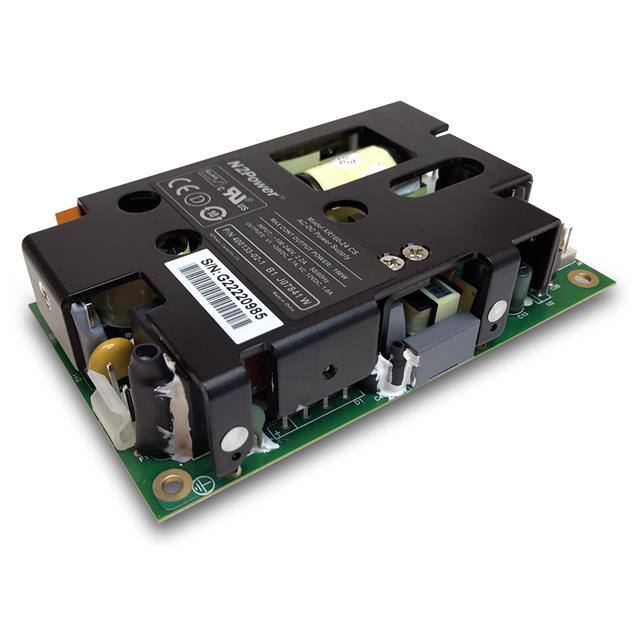

The N2Power 400133-02-1 is an AC DC converter designed for ITE (Commercial) applications. This open frame unit offers a 12V output voltage and a maximum power of 173W.
Key features include DC Input Capability, Load Sharing, Power Factor Correction (PFC), Remote On/Off, Remote Sense, Standby Output, and Universal Input. The converter operates within a temperature range of -25°C to 70°C with derating.
With dimensions of 127.0mm x 76.2mm x 33.6mm, it is designed for chassis mounting. The unit is approved by CE and cURus and complies with standard numbers 60950-1 and 62368-1. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
The output voltage is 12V.
The power rating is 173W.
The efficiency is 91%.
It has 2 outputs.
The operating temperature range is -25°C to 70°C with derating.
The mounting type is chassis mount.
The dimensions are 127mm x 76.2mm x 33.6mm (L x W x H).
