| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

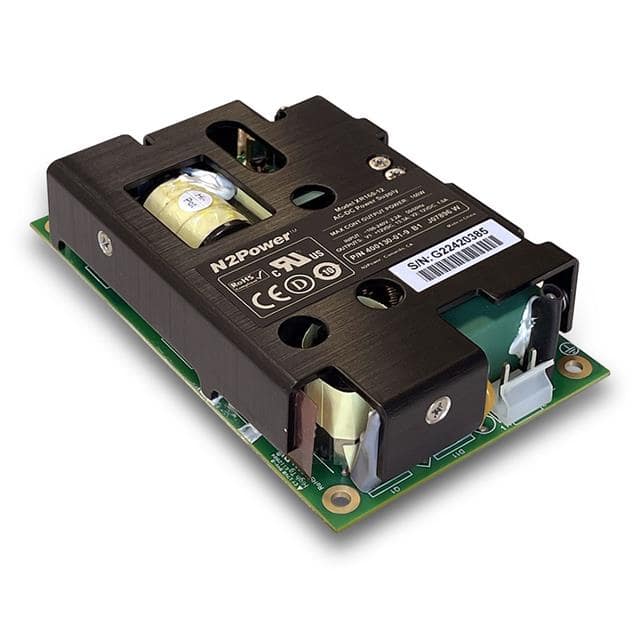

The N2Power XR160 Series 400130-01-9 is an ultrasmall, high-efficiency AC-DC power supply designed for ITE (Commercial) applications. It delivers 172W of power with a universal AC input range of 90-264 VAC and provides a single output current of 13.3A. This power supply boasts a high efficiency of up to 86% and features active PFC (Power Factor Correction) for energy savings.
Key features include remote on/off, remote sense, standby output, and a compact footprint measuring 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm). The unit is designed for chassis mounting and operates within a temperature range of -25°C to 70°C with derating. It complies with safety standards such as UL 60950-1 and EN 62368-1.
This power supply is suitable for OEMs using industry-standard 1U chassis and offers high power density. Its design aims to reduce energy consumption and heat generation, contributing to increased reliability and operational economy.
The N2Power 400130-01-9 provides 172W of output power.
This AC DC converter accepts a universal input voltage range of 90 to 264 VAC.
The maximum output current for this model is 13.3 A.
The efficiency rating for this power supply is 86%.
The operating temperature range is -25°C to 70°C, with derating applied.
This power supply uses a chassis mount type.
This unit complies with safety standards 60950-1 and 62368-1.
