| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

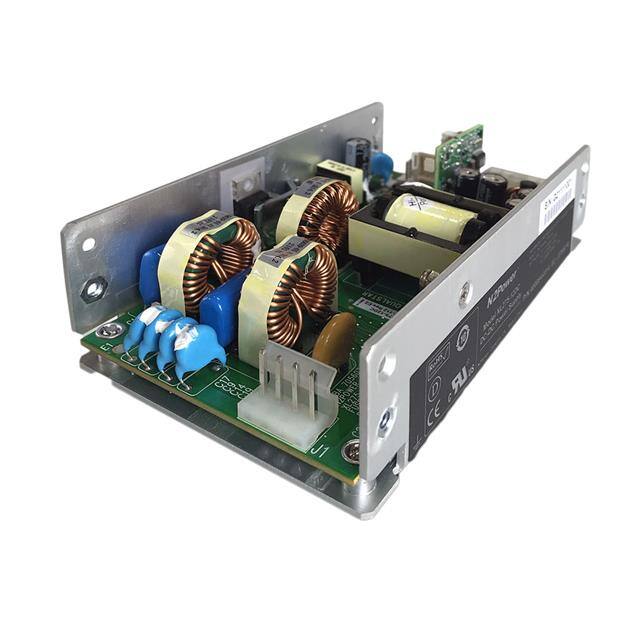

The N2Power XL275 Series, represented by the 400084-03-4 model, is an ultrasmall, high-efficiency DC-DC power supply designed for ITE (Commercial) applications. It delivers up to 287W of power with a high power density of 12 W/cu in. and achieves up to 91% efficiency, reducing energy losses.
This converter operates with an input voltage range of 36-76 VDC and provides a 12V output with a current rating of 22.9A, along with a 5W 5V standby supply. Key electrical features include active current sharing and built-in OR-ing MOSFETs for N+1 configurations. An optional PMBus interface is available for digital power management, allowing remote control and monitoring of output voltage, current, and temperatures.
The 400084-03-4 has a compact 3" x 5" footprint with dimensions of 127.0mm x 76.2mm x 38.1mm. It is designed for chassis mounting and operates within an ambient temperature range of -25°C to 70°C. The unit is compliant with safety standards such as 60950-1 and 62368-1 and holds approvals from CE, cURus, DEMKO, and UKCA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The N2Power 400084-03-4 provides 287W of power.
This DC-DC converter achieves up to 91% efficiency.
The input voltage range is 36-76 VDC.
The output voltage is 12V with currents of 22.9A and 1A.
It has 2 outputs.
The operating temperature range is -25°C to 70°C.
The dimensions are 127.0mm (Length) x 76.2mm (Width) x 38.1mm (Height).
