| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

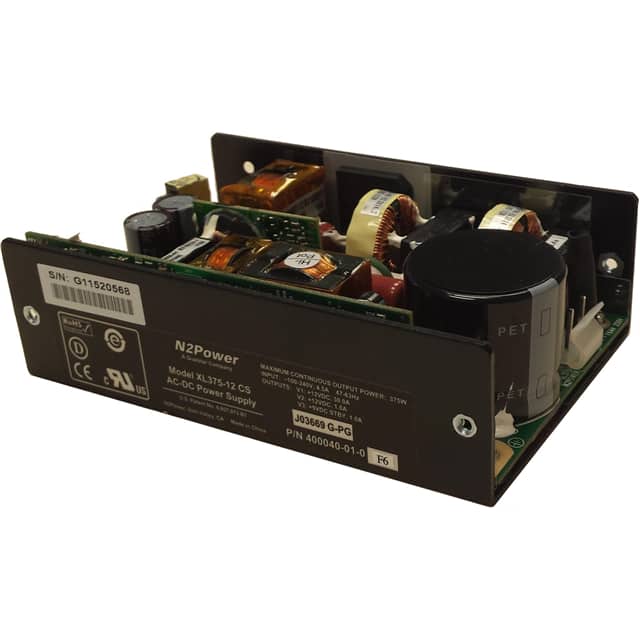

The N2Power 400040-01-0 is a high-efficiency AC-DC power module designed for various electronic applications. It delivers up to 372W of power with an efficiency rating of 93%, contributing to reduced energy losses and lower operating costs.
This module features a universal AC input range (90-264 VAC) and provides multiple outputs, including a main output, a 5V standby output (1A), and a 12V auxiliary output (1A). Key features include Active PFC, remote on/off, remote sense, hot-swappable capability, and load sharing for N+1 configurations.
The power supply has an open frame construction and a chassis mount type, with dimensions of 5.00" x 3.33" x 1.50". It operates within a temperature range of -25°C to 70°C with derating. The unit is designed for ITE (Commercial) applications and holds CE and cURus approvals.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The datasheet highlights a power density of over 15W/cu in. and convection cooling capabilities.
The N2Power 400040-01-0 provides a power output of 372W.
This module achieves up to 93% efficiency.
It has a main output of -12V, a 5V standby output, and a 12V auxiliary output.
The operating temperature range is -25°C to 70°C with derating.
It supports chassis mount.
The dimensions are 5.00" L x 3.33" W x 1.50" H (127.0mm x 84.6mm x 38.1mm).
It holds CE and cURus approvals.
