| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

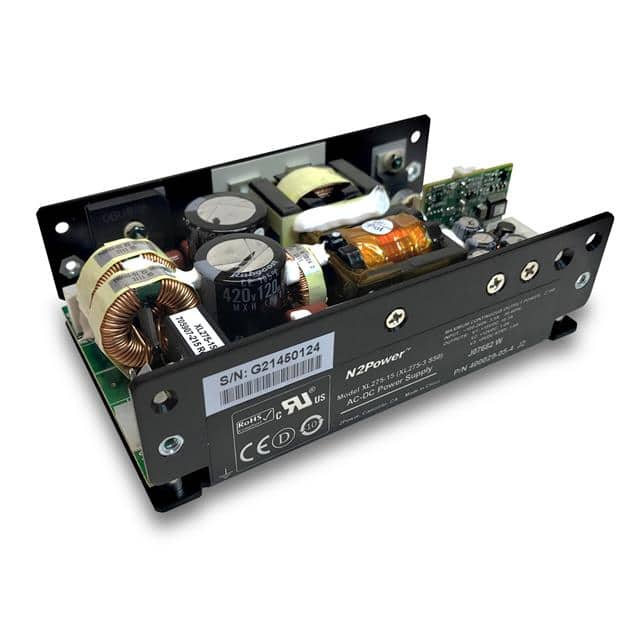

The N2Power XL275 Series 400029-05-4 is a 275 Watt AC-DC open frame power supply designed for general purpose and ITE commercial applications. It features a compact U-frame package measuring 5.00 x 3.00 x 1.50 inches, providing high power density.
This power supply boasts high efficiency, reaching up to 91%, which contributes to reduced energy costs and increased reliability. Key electrical features include universal AC input (90-264 VAC), active PFC, and multiple outputs with nominal voltages of 48V, 12V, and 6V. It also supports load sharing, remote on/off, and remote sense functionalities.
The operating temperature range is -25°C to 70°C with derating. Compliance is met with CE and cURus approvals, and it adheres to RoHS3 standards. The open frame design and chassis mount type make it suitable for integration into various systems.
With its advanced digital controller and optional PMBus interface for digital power management, the XL275 series offers sophisticated control and monitoring capabilities, making it a versatile solution for demanding applications.
The N2Power 400029-05-4 has a power output of 275W.
The efficiency of the N2Power 400029-05-4 is up to 91%.
The dimensions of the N2Power 400029-05-4 are 5.00 x 3.00 x 1.50 inches.
The operating temperature range for the N2Power 400029-05-4 is -25 to +70°C, with derating.
The N2Power 400029-05-4 provides nominal output voltages of 48V, 12V, and 6V.
Yes, the N2Power 400029-05-4 is RoHS3 Compliant.
