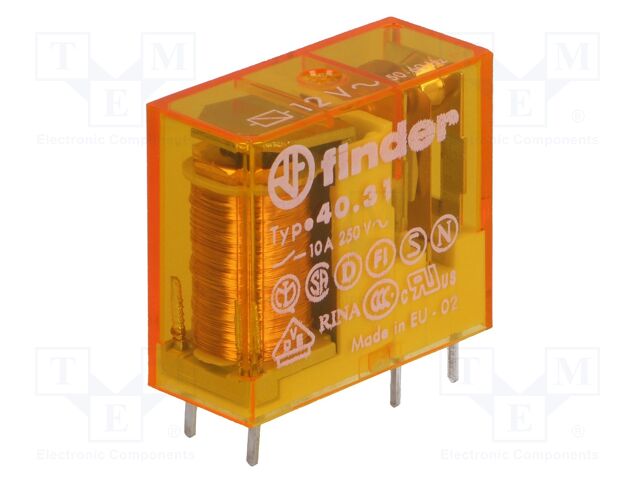

40.31.8.012 The Finder 40.31.8.012 is a miniature electromagnetic relay featuring a 12V AC coil and SPDT contacts rated for up to 20A. It is designed for PCB or socket mounting.
Mfr Part #:

40.31.8.012

Available from 1 distributors
Mfr Name: Finder
Finder
The Finder 40.31.8.012 is a miniature electromagnetic relay featuring a 12V AC coil and SPDT contacts rated for up to 20A. It is designed for PCB or socket mounting.
✓ Total Stock: 3 pcs
$ Price Range: $1.00

40.31.8.012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

40.31.8.012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Resistance
Coil Voltage
Contact Material
Mounting Type
Number of Pins
Operate Time
Operating Temperature
Relay Type
View Similar Products (0)

40.31.8.012 Description

Short technical summary and product information.

The Finder 40.31.8.012 is a miniature electromagnetic relay designed for various electrical applications. It operates with a 12V AC coil voltage and features a Single Pole Double Throw (SPDT) contact configuration. The relay can handle a maximum contact current of 20A, with specific AC contact ratings of 10A at 250V AC and DC contact ratings of 10A at 30V DC. The maximum switched voltage is 220V DC or 400V AC.



This relay is suitable for PCB or socket mounting, offering flexibility in integration. It has a coil resistance of 80Ω and an operate time of 7ms. The mechanical dimensions are 29x12.4x25mm, with a terminal pitch of 3.5mm. The mechanical durability is rated at 10,000,000 cycles, and the electrical life is 200,000 cycles. The contact material is AgNi, and it operates within a temperature range of -40°C to 85°C. The coil power consumption is 1.2VA, and it has 5 pins.



This component is part of the Finder 40.31 series and is categorized under miniature electromagnetic relays. Its specifications make it suitable for applications requiring reliable switching of moderate to high current loads within a compact form factor.

40.31.8.012 Quick Information

Product Type: Miniature Electromagnetic Relay
Series: 40.31
Canonical Name: Finder 40.31.8.012 Miniature Electromagnetic Relay
Subcategory: Miniature Electromagnetic Relay

40.31.8.012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

40.31.8.012 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

40.31.8.012 Features

  • Miniature electromagnetic relay with SPDT contacts.
  • 12V AC coil voltage for operation.
  • Handles up to 20A maximum contact current.
  • Suitable for PCB or socket mounting.
  • Wide operating temperature range from -40°C to 85°C.

40.31.8.012 Applications

  • Ideal for general purpose switching applications.
  • Suitable for control circuits in automation.
  • Used in power distribution systems.
  • Applicable in industrial equipment controls.

40.31.8.012 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the Finder 40.31.8.012 relay?

The coil voltage is 12V AC.

What is the contact configuration of this relay?

The relay has a Single Pole Double Throw (SPDT) contact configuration.

What is the maximum current the contacts can handle?

The maximum contact current is 20A.

What are the AC and DC contact ratings?

The AC contact rating is 10A at 250V AC, and the DC contact rating is 10A at 30V DC.

How is the Finder 40.31.8.012 relay mounted?

It is designed for PCB or socket mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.
