| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

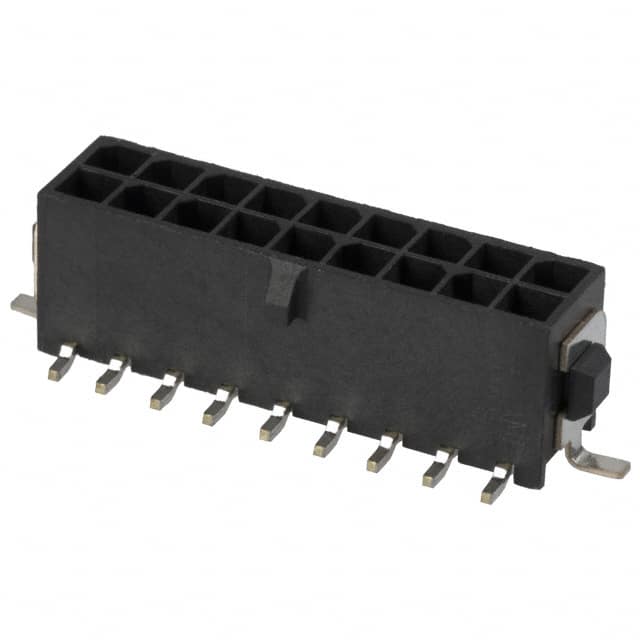

The TE Connectivity 4-794636-8 is a rectangular connector header designed for board-to-cable/wire applications. It features 18 positions arranged in 2 rows with a 3.00mm pitch and 3.00mm row spacing, providing a compact and reliable interconnection solution.
The header uses surface mount mounting with solder termination, and includes solder retention features for secure PCB attachment. The contacts are male pins made of brass with a tin finish (100.0µin / 2.54µm), and the insulator is black polyamide (nylon) with a UL94 V-0 flammability rating.
The connector is shrouded on all four walls and features a locking ramp for secure mating with corresponding cable assemblies. It is rated for 250V and operates over a temperature range of -40°C to 105°C. The current rating varies by wire gauge, so designers should consult the mating connector specifications for appropriate current handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.80 | $5.80 |
| 10+ | $5.27 | $5.27 |
| 25+ | $5.00 | $5.00 |
| 50+ | $4.88 | $4.88 |
| 100+ | $4.65 | $4.65 |
| 310+ | $4.07 | $4.07 |
| 620+ | $3.95 | $3.95 |
| 930+ | $3.37 | $3.37 |
| 2,480+ | $3.13 | $3.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 18 positions, all loaded, arranged in 2 rows.
The pitch is 3.00mm (0.118 inches), with the same row spacing.
The voltage rating is 250V.
The header is surface mount with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are tin-plated with a thickness of 100.0µin (2.54µm).
Yes, it is shrouded on all four walls and features a locking ramp for secure mating.
