| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
468 pcs
|
468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

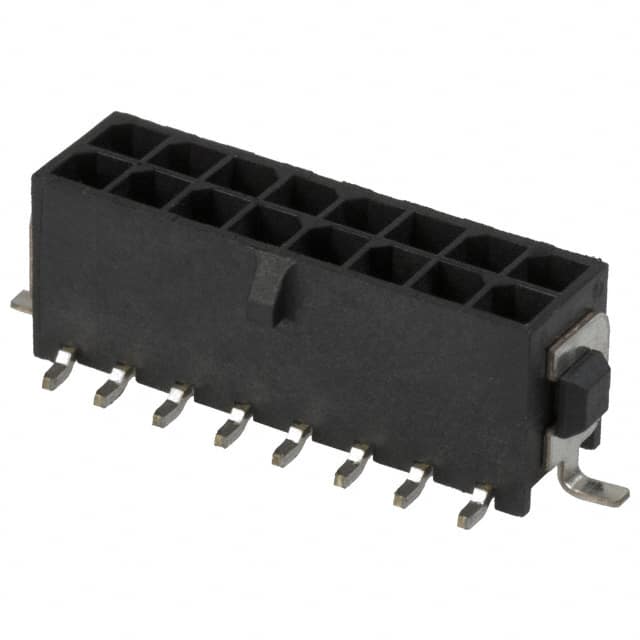

The TE Connectivity 4-794636-6 is a 16-position, dual row, shrouded header from the Micro MATE-N-LOK connector system. It features a 3.00mm pitch and 3.00mm row spacing, designed for wire-to-board applications. The header is surface mount (SMD) with solder termination and includes a locking ramp for secure mating. The insulation is black polyamide (nylon) with a UL94 V-0 flammability rating, and the housing height is 9.25mm. Contacts are made of brass with a 100.0µin tin finish. The operating temperature range is -40°C to 105°C, and the voltage rating is 250V. Solder retention features are included for reliable board attachment. This component is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.98 | $4.98 |
| 10+ | $4.23 | $4.23 |
| 175+ | $3.45 | $3.45 |
| 350+ | $3.29 | $3.29 |
| 525+ | $3.20 | $3.20 |
| 875+ | $3.08 | $3.08 |
| 1,225+ | $3.01 | $3.01 |
| 1,750+ | $2.94 | $2.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118").
It has 16 positions, all loaded, in a dual row configuration.
Surface mount (SMD) with solder termination.
The voltage rating is 250V.
-40°C to 105°C.
Yes, it is a shrouded header with 4-wall shrouding and a locking ramp.
