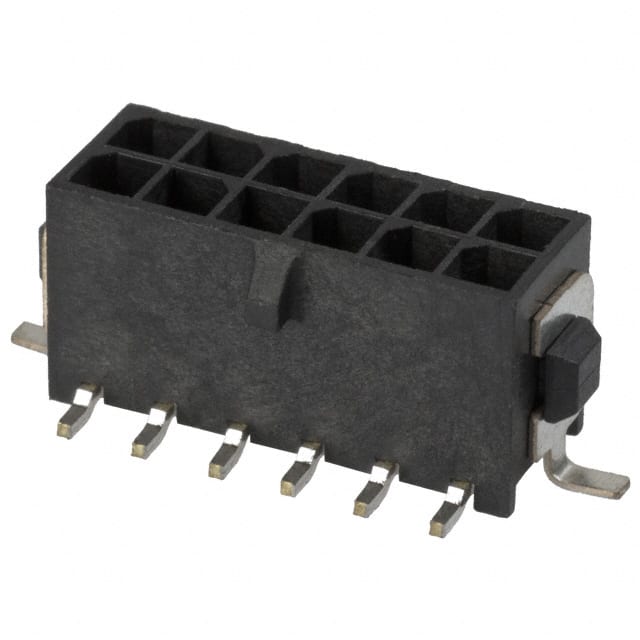

The TE Connectivity 4-794636-2 is a 12 position, dual row, shrouded header from the Micro MATE-N-LOK connector series. It features a 3.00mm pitch and 3.00mm row spacing, designed for surface mount solder termination to a PCB. The header accommodates board-to-cable/wire connections and includes a locking ramp for secure mating.
The black polyamide (nylon) insulator is rated UL94 V-0 for flammability and has an insulation height of 9.25mm. Contacts are made of brass with a 100.0µinch (2.54µm) tin plating. The design includes solder retention features for reliable board mounting during reflow processes.
This header is rated for 250V and has an operating temperature range of -40°C to 105°C. It is suitable for a variety of applications including household appliances, lighting, and factory automation. The connector system supports wire gauges from 30 to 18 AWG with appropriate contacts.
Surface mount packaging is available in tape and reel for automated assembly. Please consult the manufacturer's product specification (108-1836) for detailed current ratings which vary by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.05 | $4.05 |
| 10+ | $3.44 | $3.44 |
| 175+ | $2.81 | $2.81 |
| 350+ | $2.68 | $2.68 |
| 525+ | $2.60 | $2.60 |
| 875+ | $2.51 | $2.51 |
| 1,225+ | $2.45 | $2.45 |
| 1,750+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118 inches).
It has 12 positions, with all positions loaded.
The voltage rating is 250V.
It is a surface mount header with solder termination.
The operating temperature range is -40°C to 105°C.
Contacts are made of brass with a tin plating of 100.0µin (2.54µm) thickness.
RoHS compliance is indicated as RoHS3 compliant but is unverified. Confirm with manufacturer.
