| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

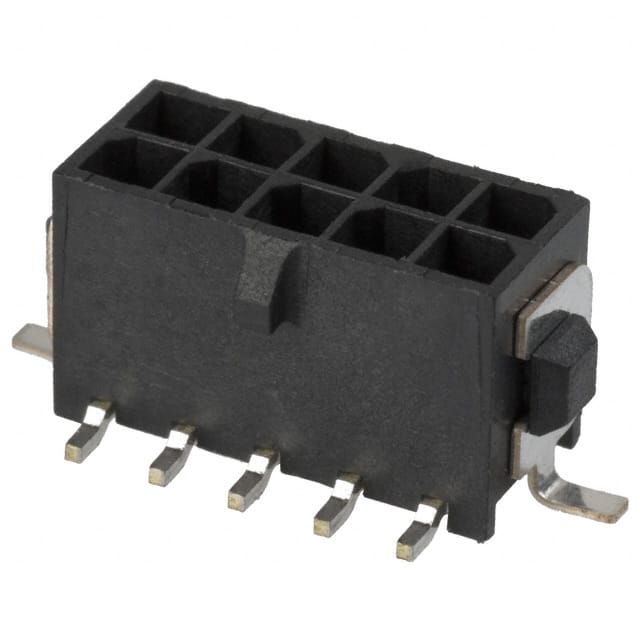

The TE Connectivity 4-794636-0 is a 10-position, dual-row shrouded header from the Micro MATE-N-LOK connector system. It features a 3.00mm pitch and 0.118" row spacing, designed for board-to-cable/wire applications. The header is surface mount with solder termination and includes a locking ramp fastening type for secure mating.
The header is rated for 250V and has an operating temperature range of -40°C to 105°C. The insulation is black polyamide (nylon) with a UL94 V-0 flammability rating. Contacts are made of brass with a tin finish (100.0µin thickness) and a square contact shape. The part includes a solder retention feature for reliable board attachment.
This component is part of the Micro MATE-N-LOK system, which supports wire-to-board connections in vertical and right-angle configurations. The shrouded 4-wall design provides pin protection and alignment during mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.36 | $3.36 |
| 175+ | $2.74 | $2.74 |
| 350+ | $2.61 | $2.61 |
| 525+ | $2.54 | $2.54 |
| 875+ | $2.45 | $2.45 |
| 1,225+ | $2.39 | $2.39 |
| 1,750+ | $2.33 | $2.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118").
It has 10 positions in 2 rows, all positions loaded.
The voltage rating is 250V.
It is a surface mount component with solder termination.
The operating temperature range is -40°C to 105°C.
Contacts are brass with a tin finish of 100.0µin (2.54µm).
RoHS3 compliance is indicated but unverified.
